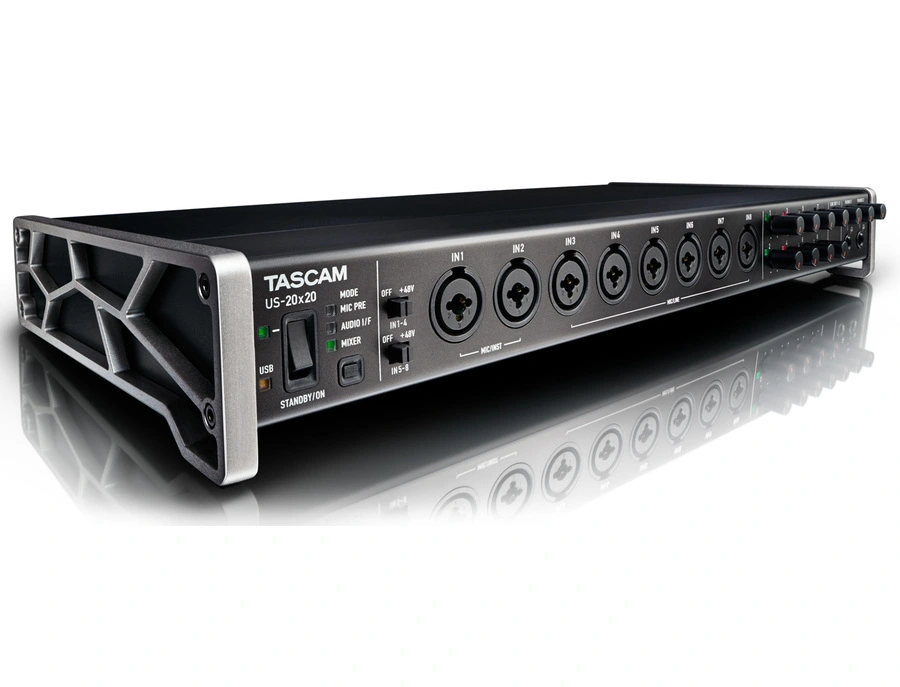

Celesonic US-20x20

20-in/20-out USB 3.0 Interface with Mic Pre and Digital Mixer Modes

TASCAM’ Celesonic US-20x20 packs 20 channels of analog and digital I/O into a single rackspace with great sounding preamps and USB 3.0/2.0 connectivity. Eight Ultra-HDDA microphone preamps provide 56dB of gain and high headroom to make microphones sound their best. Up to ten channels of digital I/O are included on ADAT and S/PDIF connectors, with word clock also provided for use with external clocks like TASCAM’s CG-1000. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 192kHz/24-bit are supported.

The TASCAM Celesonic US-20x20 is the first USB 3.0 interface to use class-compliant drivers for future-proof use with computers and tablets. A built-in DSP mixer includes parametric EQ and compression on every channel and a stereo reverb send for great-sounding monitor mixes. The DSP mixer can also be used as a live mixer or submixer with computer control. The US-20x20 has three operation modes – audio interface, digital mixer, and 8-channel digital mic preamp –for maximum flexibility.

Ultra-HDDA mic preamps deliver high headroom for dynamic tracks

TASCAM's Ultra-HDDA mic preamps provide up to 57dB of gain with the highest headroom in their class. Meaning your tracks won't be distorted before they even hit your computer, resulting in sweeter mids and deep soundstaging.

Popularized in TASCAM's HS-P82 professional broadcast and film recorders, Ultra HDDA preamps have the performance to handle condenser, dynamic, and ribbon microphones. These versatile preamps also feature line-level inputs for keyboards and other equipment.

Sleek Industrial Design Inspires Creativity

We have applied the engineering expertise from years of making audio interfaces to create products that are both pioneering and practical. The slightly angled Bio-cell side panels provide users with excellent ergonomics and stimulate creativity. An adapter that supports rack-mounting is also included.

DSP mixer with 4-band EQ and compression on each input channel

Utilizing an Analog Devices BlackFin processor, the US-20x20 offers an advanced digital mixer. Every input has 4-band EQ, compressor, and low-cut filter. A stereo reverb processor is provided for dynamic headhone monitoring. The DSP mixer can store up to (10) snapshots as scenes - making it easy to recall mixer settings.

Three selectable modes included: interface/mic preamp/mixer

The versatile Celesonic US-20x20 is an Interface for multitrack recording using a personal computer and DAW, a standalone mic preamp, or a mixer for live performances or mixing keyboards. In mic preamp mode, the Ultra-HDDA preamps are sent to the ADAT Optical and S/PDIF digital outputs at up to 192kHz.

Product specs

FAQs

What are the main connectivity options for the TASCAM Celesonic US-20x20?

The TASCAM Celesonic US-20x20 offers USB 3.0 connectivity, ensuring fast data transfer. It also includes ADAT/Optical and S/PIDF digital input and output formats, providing versatile connection options for various studio configurations.

How many mic preamps are included in the TASCAM Celesonic US-20x20?

The TASCAM Celesonic US-20x20 features eight Ultra-HDDA microphone preamps, delivering high headroom and 56dB of gain for clear and detailed sound capture.

Is the TASCAM Celesonic US-20x20 compatible with macOS?

Yes, the TASCAM Celesonic US-20x20 is compatible with macOS, as well as Windows and iOS, making it a versatile choice for different operating systems.

Can the TASCAM Celesonic US-20x20 be used for MIDI devices?

Yes, the TASCAM Celesonic US-20x20 includes one MIDI input and one MIDI output, allowing integration with MIDI devices for comprehensive studio setups.

What is the sample rate capability of the TASCAM Celesonic US-20x20?

The TASCAM Celesonic US-20x20 supports a sample rate of up to 192 kHz, providing high-resolution audio quality for professional recording and mixing.

Does the TASCAM Celesonic US-20x20 offer headphone outputs?

Yes, the TASCAM Celesonic US-20x20 includes two headphone outputs, enabling convenient monitoring for multiple users during recording sessions.
