CAPI BT50 500-Series Equalizer Module

$794.00 Price Tier: High-end

Find out who is using CAPI BT50

1 wishlisted

2 saved

Page last updated Jun 04, 2026

Pricing and availability

We compare 600+ stores and found this item at 1 store. Prices updated January 29, 2026.

Store

Reviews

Price

ResistanceAudio

$794.00

View Deal

Average Price: $794

High-end/Boutique

$100

$501+

Price Tier

In the Effects Processors category, CAPI BT50 500-Series Equalizer Module is priced in the High-end/Boutique range. This premium gear is built to very high standards and offers premium features.

Budget

Standard

High-end

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

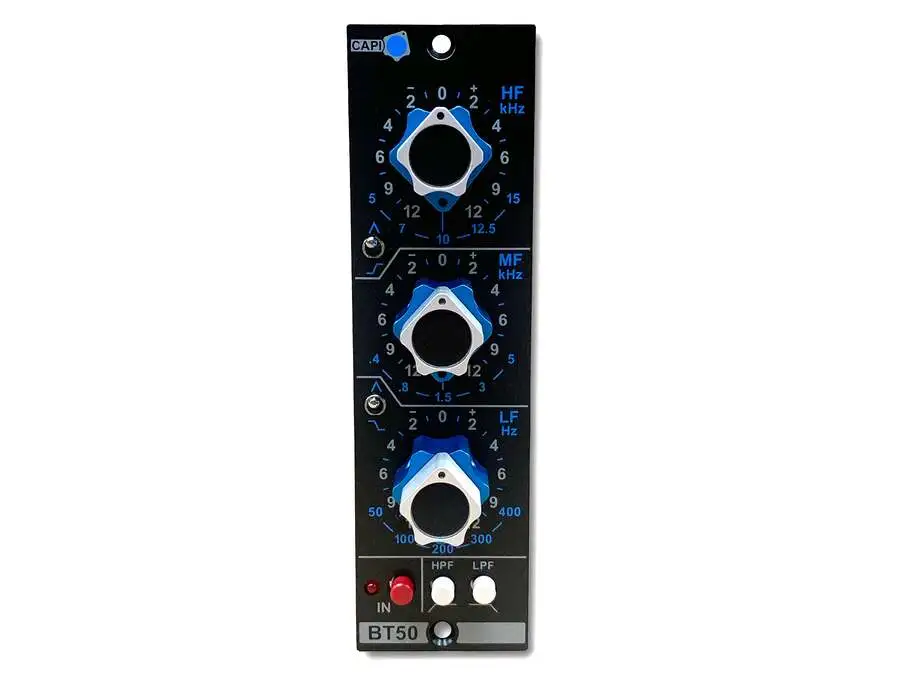

The BT50 500-Series Equalizer Module by CAPI

The CAPI BT50 is a classic-style 3-band API-format equalizer module in the 500 series, faithfully modeled after the original API 550 EQ that helped define studio equalization in the late 1960s. It uses the traditional Bridged-T topology with Proportional-Q filters with boost filters embedded in feedback loops and cut filters between discrete opamps to deliver that signature punchy, musical API sound with smooth, musical filter curves. Unlike the original 550, the BT50 expands flexibility by offering five selectable frequencies for its high and low bands plus separate high-pass and low-pass sections. Built with high-quality opamps (often CA-0252 or compatible discrete designs), it provides characterful tone shaping that works well on vocals, guitars, drums, bass, or mix buses, while stepped controls offer recall-friendly operation.

Specs:

• Format: 500-series EQ module (API/VPR compatible)
• Topology: Classic Bridged-T equalizer with Proportional-Q filter behavior
• Bands: 3-band equalizer with separate high-pass (HP) and low-pass (LP) sections
• Low band: ~5 selectable frequencies (similar to vintage API 550A)
• Mid band: Center frequencies within typical midrange range (varies by implementation)
• High band: ~5 selectable frequencies, adjustable shelving/peak behavior
• HP: ~50 Hz; LP: ~15 kHz (typical values)
• Opamps: Discrete classic-style opamp options (e.g., CA-0252, GAR2520, Red Dot 2520)
• Input/Output: API 500 standard edge connector (balanced path through host rack)
• Gain Structure: Historically unbalanced input characteristic with jumpers to adjust modern high-Z loading and level compensation
• Controls: Stepped frequency and cut/boost knobs for precise recall
• Typical Use: Tone shaping on instruments, vocals, drums, mix buses, or corrective EQ duties in tracking or mix stages
