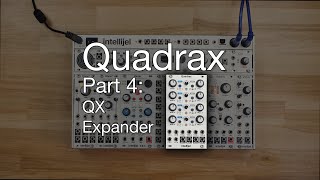

Unlock new creative possibilities in your modular setup with the Intellijel Qx, a clever expander designed to seamlessly integrate with the Quadrax module. Perfect for those who crave more control and dynamics in their sonic landscape, the Qx adds an extra dimension to your Quadrax by offering additional trigger/gate outputs. Each of Quadrax's four channels gets its own End Of Rise (EOR) and End Of Fall (EOF) output, injecting flexibility and precision into your performances and compositions.

Whether you’re a seasoned modular enthusiast or a curious newcomer, the Intellijel Qx opens up a world of rhythmic and modulation capabilities without overwhelming your rack space. At only 4 HP wide, it's a compact powerhouse that lets you maximize your modular potential without compromise. Its efficient power consumption ensures it plays well with the rest of your setup, making it a must-have for anyone looking to elevate their Eurorack experience.

Key Features:

• Expander for the Quadrax module (Quadrax not included)
• Adds EOR and EOF trigger/gate output to each of the Quadrax’s four channels
• Power requirement: 8 mA (+12V) / 0mA (-12V)
• Width: 4 HP
• Depth: 22 mm

FAQs:

What is the Intellijel Qx? What is its primary function in a Eurorack system?
The Intellijel Qx is a compact 4-channel gate and trigger expander. Its primary function is to multiply a single gate or trigger signal into four identical buffered outputs. It is ideal for duplicating rhythmic or timing signals without voltage loss, making it an essential utility for live performance and complex sequencing setups.

What are the key features and benefits of using the Qx?
- Four identical buffered outputs
- No latency or timing shift
- Clean, consistent triggering for all connected modules
- Designed for both integration and standalone use
- LED indicators show activity on each output
- Space-efficient at only 4HP

How does the Qx differ from a passive or buffered mult?
While mults duplicate any signal, the Qx is purpose-built for gates and triggers:
- Passive mults are unbuffered and may degrade signal quality
- Buffered mults work well but are general-purpose
- Qx is optimized for fast, precise gate and trigger duplication, with internal headers for seamless expansion of Intellijel sequencers like Metropolix and Scales

What Intellijel modules is the Qx designed to expand or integrate with?
The Qx connects directly via ribbon cable to:
- Metropolix
- Scales
- Other Intellijel modules with compatible expansion headers
It also functions independently, making it useful with any gate or trigger source in a Eurorack system.

What are the power requirements and dimensions of the Qx?
- Width: 4HP
- Depth: 24mm
- Power: +12V at 10mA, -12V at 0mA
It does not require a +5V rail and is skiff-friendly.

How do I install the Qx and connect it to another module?
1. Power down your Eurorack case
2. Mount the Qx in a 4HP space
3. Connect the power ribbon (observe red stripe orientation)
4. If integrating with a compatible module, connect the included expansion ribbon between the Qx and the host module’s rear header
5. Power up and patch

Why is buffering important for gate and trigger signals?
Buffering ensures:
- No voltage drop when sending to multiple destinations
- Consistent signal strength and timing
- Reliable triggering of all connected modules, especially important for sensitive or analog gear

Can I use the Qx without a host module?
Yes. The Qx can operate as a standalone 1-in, 4-out buffered gate/trigger splitter. Just patch any gate or trigger into its input, and send four clean copies wherever you need them.

What are some useful patching examples for the Qx?
- Split one trigger to fire multiple drum voices simultaneously
- Send one clock pulse to multiple sequencers or modulators
- Trigger multiple envelope generators from a single gate
- Sync effects or reset pulses across several modules
- Create stereo effects by triggering similar modules panned left and right
