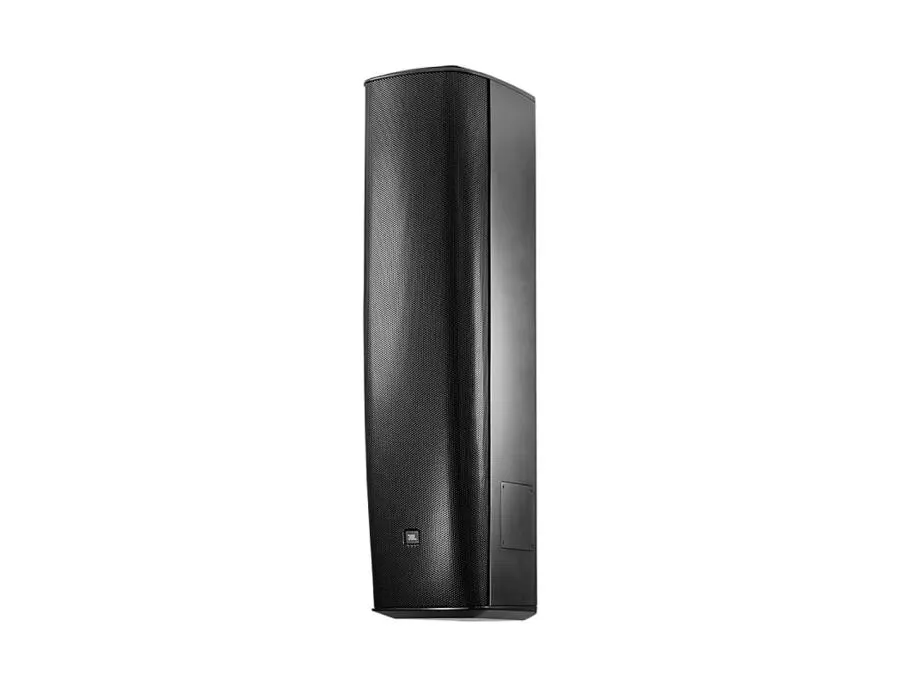

Elevate your sound experience with the JBL CBT 1000 Line Array Column Installation Loudspeaker, a marvel of acoustic engineering that combines Constant Beamwidth Technology and adjustable vertical coverage for unparalleled sound precision. Whether you're outfitting a performance auditorium, house of worship, or lecture hall, this speaker delivers consistent audio clarity with no compromise, making it ideal for diverse acoustic environments.

The CBT 1000 features an innovative design that boasts a combination of six full-range and six low-frequency drivers, creating a dynamic and flexible audio experience. Its asymmetrical coverage settings allow for a tailored sound distribution, directing more sound to the far reaches of the room for balanced front-to-back audio levels. The vertical pattern coverage is customizable with 16 different configurations, all without the need for external DSP processing, putting acoustic design control directly in your hands.

Built to withstand the elements, this speaker is perfect for both indoor and outdoor installations. Its robust construction includes a UV-resistant paint and a powder-coated aluminum grille, ensuring durability and longevity in any setting. With a frequency response range of 45Hz to 20kHz, the CBT 1000 is versatile enough for both music and speech applications, offering switchable voicing options for optimal performance.

Key Features:

• Constant Beamwidth Technology for consistent directivity and reduced lobing
• Individually adjustable vertical pattern coverage with 16 configurations
• Tapered Horizontal Waveguide for optimal horizontal dispersion
• High power handling with sound levels up to 131 dB
• Versatile frequency response range of 45Hz to 20kHz
• Weather-resistant design with UV, moisture, and salt protection
• Includes a two-part swivel (pan)/tilt wall-mount bracket for easy installation

Product specs

FAQs

What is the coverage pattern of the JBL CBT 1000 speaker?

The JBL CBT 1000 offers a horizontal coverage angle of 100-160 degrees, which provides wide and consistent sound dispersion suitable for various indoor applications.

How much power can the JBL CBT 1000 handle?

The JBL CBT 1000 can handle 1500W for 2 hours continuously and 1000W for 100 hours, with a total power rating of 4000W for continuous use over 100 hours.

What type of drivers are used in the JBL CBT 1000?

The JBL CBT 1000 features 6 x 6.5" neodymium woofers and 24 x 1" soft dome tweeters, designed to deliver clear and powerful sound across its frequency range.

Can the JBL CBT 1000 be used outdoors?

The JBL CBT 1000 is primarily designed for indoor use, but its robust construction with a fiberglass reinforced ABS cabinet and powder-coated aluminum grille can withstand some challenging environments.

What mounting options are available for the JBL CBT 1000?

The JBL CBT 1000 can be wall-mounted or flown, providing flexibility for different installation requirements in various venues.
