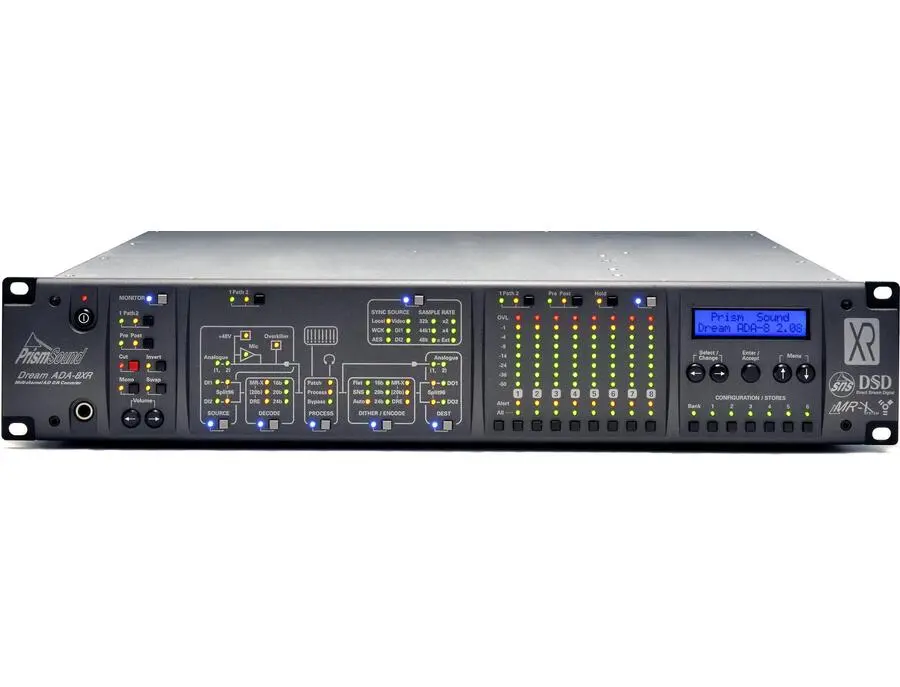

Prism Sound ADA-8XR Audio Interface with 16-channel D/A - Pro Tools HDX is a world-class audio interface designed for professional recording, mastering, broadcasting, and post-production. This industry-leading device has been the choice of top-notch studios around the globe, delivering unrivaled transparency and sonic performance.

The ADA-8XR stands out for its up to 24-bit /192kHz resolution, ensuring every detail of your performance is captured. The interface is equipped with a comprehensive control system and an onboard display, giving complete control over your recording process. Its modular, chassis-based design facilitates versatile I/O configurations, making it adaptable to a variety of studio workflows.

This model comes preconfigured with two 8C-DA analog line out modules and an 8-channel HDX interface card, providing a factory-fitted setup that is ready to integrate into your recording setup. The unit also comes with Prism Sound's proprietary Overkiller progressive limiter on each channel, ensuring that your audio never peaks, regardless of the input level.

Key Features:

• ADA-8XR chassis fitted with 16 channels of D/A and Pro Tools HDX option card
• 2 x Prism Sound 8C-DA analog line out modules
• 1 x Prism Sound 8C-PTHDX Pro Tools HDX I/O interface module
• Up to 24-bit/192kHz resolution
• 2 analog I/O module slots
• 2 digital I/O module slots
• Utility slot (monitor, sync, RS232/485/MIDI)
• 1 internal DSP expansion slot
• 2-channel monitoring with analog and digital outputs
• Electronically balanced, RCA/phono analog outputs
• AES3-ID / S/PDIF, 24-bit digital output
• 6.3mm stereo headphone output
• Metering: 8-channel bar graph with peak hold; 2-channel readout; assignable Alert function

Owner's manual

Product specs

FAQs

What are the main connectivity options for the Prism Sound ADA-8XR Audio Interface?

The Prism Sound ADA-8XR offers 8 XLR analog inputs and outputs, 2 RCA monitor outputs, a DB25 digital output for AES3-ID/S/PDIF, 2 XLR data I/O for AES, and BNC clock inputs and outputs.

Is the Prism Sound ADA-8XR compatible with Pro Tools HDX systems?

Yes, the Prism Sound ADA-8XR is specifically designed for integration with Pro Tools HDX systems, providing seamless connectivity and performance.

What sample rates and bit depths does the Prism Sound ADA-8XR support?

The Prism Sound ADA-8XR supports sample rates from 32kHz to 192kHz and operates at a 24-bit depth, ensuring high-quality audio conversion.

How many channels does the Prism Sound ADA-8XR Audio Interface support?

This audio interface supports 16 channels, allowing for extensive multi-channel recording and playback capabilities.

Does the Prism Sound ADA-8XR have expansion capabilities?

Yes, the ADA-8XR features expansion slots for additional analogue, digital, utility, and internal DSP modules, enhancing its versatility and functionality.
