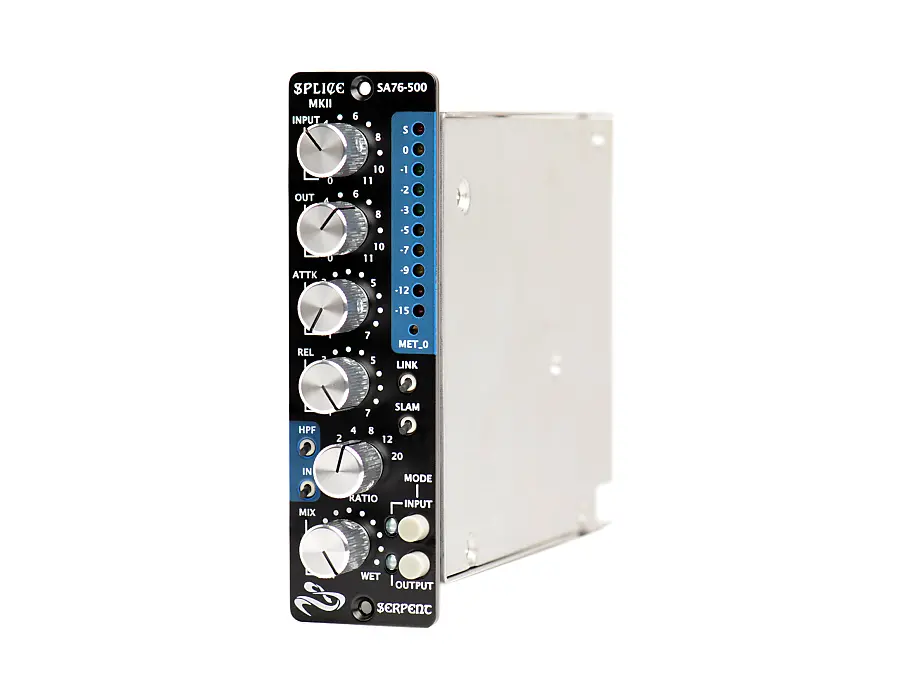

The Serpent Audio SA76-500 Splice MKII 500 Series FET Compressor Module is a powerhouse of compression versatility, seamlessly blending the iconic tones of two legendary FET compressors into one sleek unit. With its unique mode switching, you can effortlessly toggle between the revered Blackface and Blue Stripe circuits or craft entirely new sonic landscapes by combining the two, offering an exclusive palette found only in the Splice.

Engineered for the most discerning audio professionals, this module's Slam mode unleashes the formidable "All Buttons In" configuration, delivering explosive, character-laden compression that captures the essence of vintage gear while injecting a modern twist. Perfect for those seeking a robust and dynamic sound, the SA76-500 Splice MKII is equipped with a range of compression ratios from 2:1 to 20:1, providing flexibility from subtle nuances to intense limiting.

Whether you're capturing the raw energy of a drum session or adding warmth to vocal tracks, the Splice MKII ensures unparalleled audio fidelity and creativity in your studio setup. Its integrated Mix/Blend control, stereo link capability, and sidechain highpass filter make it a versatile tool for any audio engineer aiming to push the boundaries of sound.

Key Features:

• Switchable between Blackface and Blue Stripe modes, with mix-and-match capability for unique sounds
• Slam mode for the "All Buttons In" effect
• Stereo linkable with a front-panel switch
• Integrated Mix/Blend control for parallel processing
• Selectable 600R output loading for compatibility with vintage and modern equipment
• LED gain reduction meter
• Attack time: 20 to 800µs; Release time: 50ms to 1.1s
• Compression ratios: 2:1, 4:1, 8:1, 12:1, 20:1, and soft bypass
• Includes a 2-year limited warranty

Product specs

FAQs

What type of compression does the Serpent Audio SA76-500 Splice MKII use?

The Serpent Audio SA76-500 Splice MKII utilizes FET (Field Effect Transistor) compression, known for its fast attack times and distinctive character, making it ideal for adding punch and presence to vocals and instruments.

Can the SA76-500 Splice MKII be used in a 500 Series rack?

Yes, the SA76-500 Splice MKII is designed as a 500 Series module, fitting into a standard single-slot 500 Series rack, making it compatible with most 500 Series enclosures.

What controls are available on the SA76-500 Splice MKII?

The SA76-500 Splice MKII features controls for input, output, mix, ratio, attack, and release, allowing precise manipulation of the compression characteristics to suit various audio sources.

Does the SA76-500 Splice MKII have a side chain filter?

Yes, the SA76-500 Splice MKII includes a highpass filter in its side chain insert, which helps manage low-frequency compression and maintain clarity in the mix.

What is the power requirement for the SA76-500 Splice MKII?

The SA76-500 Splice MKII requires ±16V DC and consumes 175mA, which is standard for 500 Series modules and should be compatible with most 500 Series power supplies.
