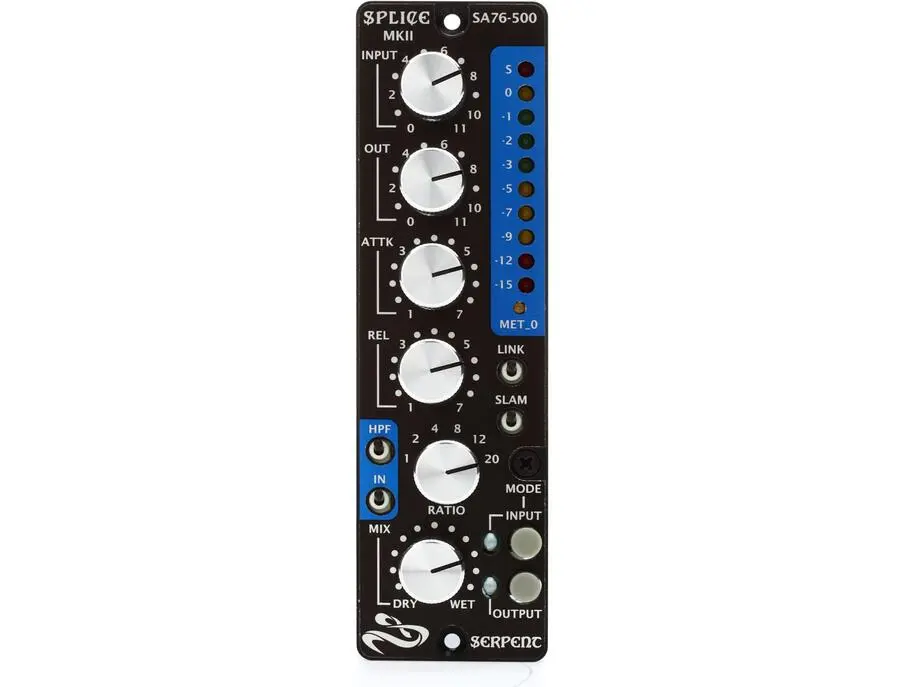

Elevate your studio recordings with the Serpent Splice-500 MkII, a 500 Series FET Compressor that merges classic appeal with modern innovation. Designed to replicate the sound and behavior of two legendary FET compressors, this module offers unmatched versatility for any audio professional. The Splice-500 MkII features a unique mode-switching capability, allowing you to toggle between the iconic Blackface and Blue Stripe circuits, or even mix them for a totally new sonic palette, exclusive to this device.

The Splice-500 MkII doesn't stop at versatility. Its Slam mode mimics the revered "All Buttons In" setting of vintage compressors, delivering explosive results with a twist. Whether you're compressing drum room mics or vocals, the Splice-500 MkII transforms your tracks with a character that ranges from subtle to seismic. The integrated Mix/Blend control and switchable sidechain high-pass filter provide precise control, making it a must-have for both vintage enthusiasts and modern audio engineers.

Enhance your setup with stereo link capabilities, LED gain reduction metering, and selectable 600R output loading to ensure compatibility with a wide range of equipment. The Splice-500 MkII is not just an effects processor; it's a creative catalyst for your studio.

Key Features:

• Mode switching between classic Blackface and Blue Stripe circuits
• Unique hybrid configurations for new sound possibilities
• Slam mode for extreme compression effects
• Integrated Mix/Blend control for parallel processing
• Stereo linkable with a front-panel switch
• Selectable 600R output loading
• LED gain reduction meter
• Compression ratios of 2:1, 4:1, 8:1, 12:1, and 20:1
• Attack time: 20 to 800µs; Release time: 50ms to 1.1s
• Backed by a 2-year limited warranty

Owner's manual

Product specs

FAQs

What type of compressor is the Serpent Splice-500 MkII?

The Serpent Splice-500 MkII is a FET compressor, known for its fast attack and release times, making it ideal for dynamic processing on drums, vocals, and other transient-rich sources.

Can the Serpent Splice-500 MkII be used in stereo applications?

Yes, the Serpent Splice-500 MkII is a single-channel compressor but can be stereo linked with another unit for stereo applications.

What control options does the Serpent Splice-500 MkII offer?

The Serpent Splice-500 MkII provides controls for input, output, mix, ratio, attack, and release, allowing detailed manipulation of compression characteristics.

Does the Serpent Splice-500 MkII include a sidechain filter?

Yes, the Serpent Splice-500 MkII features a highpass filter in its sidechain insert, which helps prevent low frequencies from triggering the compressor.

What power requirements does the Serpent Splice-500 MkII have?

The Serpent Splice-500 MkII requires ±16V DC power and consumes 175mA, suitable for standard 500 series racks.
