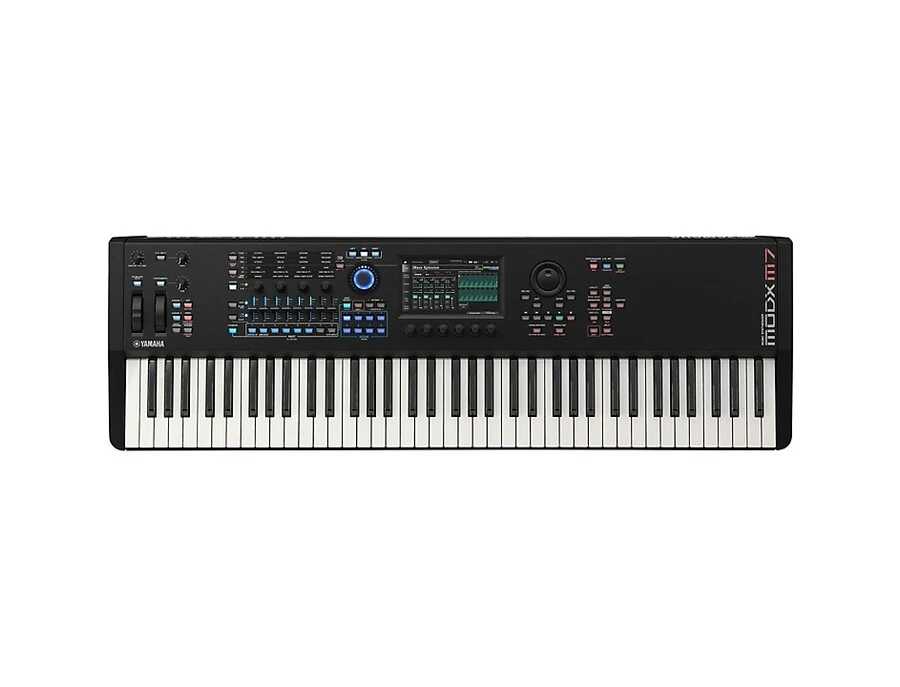

The MODX M7 76-Key Synthesizer Yamaha

The Yamaha MODX M7 is a high-performance 76-key synthesizer designed for musicians who want flagship-level sound design, expressive control, and streamlined workflow in a portable instrument.
It combines three powerful sound engines AN-X analogue-style, FM-X frequency modulation, and AWM2 sample-based synthesis to offer exceptionally wide sonic versatility, from realistic acoustic sounds to cutting-edge synthesis textures.
The semi-weighted FSB keyboard with Initial Touch gives responsive playability, while performance controls like eight faders, assignable knobs, Super Knob, and a 7″ colour touchscreen put real-time expression at your fingertips.
Integrated effects, a 16-track sequencer, and an 8-part arpeggiator make it equally capable on stage or in the studio.
Deep DAW integration via the Expanded Softsynth Plugin (ESP) and a multichannel USB audio/MIDI interface further expand creative possibilities for recording and sound creation.

Specs:

• Type: 76-key performance synthesizer
• Keyboard: Semi-weighted FSB with Initial Touch (no aftertouch)
• Weight: Approx. 7.6 kg (16 lb 12 oz)
• Dimensions (W × D × H): ~1089 × 347 × 117 mm
• AN-X: Analogue-style synthesis engine (3 oscillators + noise)
• FM-X: 8-operator FM synthesis engine
• AWM2: Advanced sample-based engine with up to 128 elements per part
• Total Polyphony: Up to 268 voices across engines
• Preset Wave Memory: ~10.7 GB
• User Flash Memory: ~1.9 GB
• Parts: 16 internal parts + audio input parts (A/D and USB)
• 8 performance faders
• 4 assignable knobs
• Super Knob for macro control
• Pitch bend & modulation wheels
• Display: 7″ colour touchscreen
• Dedicated Part & Scene selection buttons
• Integrated effects with multiple reverb, variation, insertion, and master types
• Sequencer & Arpeggiator
• Sequencer: 16-track with ~128 patterns
• Arpeggiator: Up to 8 parts with thousands of presets
• Audio Outputs: L/Mono and R
• Audio Inputs: Stereo A/D input
• USB Audio/MIDI: USB 2.0 with multichannel I/O and MIDI 2.0 support
• Pedal Inputs: Sustain & assignable; foot controller inputs
• Software & Integration
• Included Software: Cubase AI
• Expanded Softsynth Plugin (ESP): DAW integration and editing (early 2026 release)
