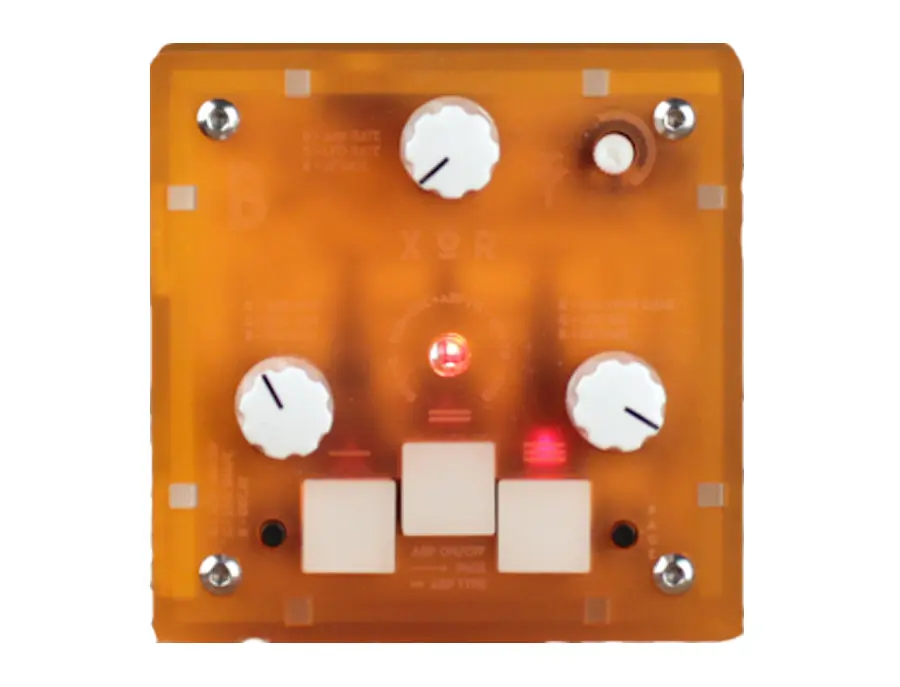

^ [XOR] is a logical statement but also bit operator which is sort of a combination of & [AND] and | [OR]. By applying this modulation to the classical wavetables you can achieve very interesting harmonics added to the sound. Especially when more voices are mixed, it comes to some really interesting dirty digital modulation artefacts. ^ [XOR] is intended to be used as a sound module for a MIDI keyboard and it doesn`t produce any sound without the keyboard. It needs MIDI Bastl to interface the MIDI jack.

Features

• 6 voice polyphony
• wavetable based – sine, saw, triangle, digi-noise
• played ONLY by MIDI using MIDI Bastl
• ^[xor], &[and], |[or] modulation
• arpeggiator – gate and note modes, different shapes, adjustable speed, MIDI clock sync,
• 8 different sound settings in one preset
• 6 presets
• ADSR
• LFO
• full MIDI implementation (note, velocity, pitch bend, mod wheel sustain, CC, clock)

Note: It does not run from battery – because the battery would not power the MIDI Bastl via the chain connector.

See Trinity page for more information

Technical details

• dimensions: 75 x 75 x 55 mm
• powered by 9V DC center positive power supply or side pins
• user manual pdf
• latest source code at gitHub in the examples folder of the bastlTrinity repository
• MIDI implementation table
• assembly instructions Trinity instructables pdf
• assembly instructions MIDI Bastl instructables pdf

Product specs

FAQs

What type of synthesis does the Bastl Instruments Trinity XOR use?

The Bastl Instruments Trinity XOR utilizes digital synthesis with features like an arpeggiator, envelope, LFO, and oscillator, providing a wide range of sound design possibilities.

How many voices of polyphony does the Bastl Instruments Trinity XOR offer?

The Trinity XOR offers 6 voices of polyphony, allowing for complex chordal textures and layered sounds.

Does the Bastl Instruments Trinity XOR include an arpeggiator?

Yes, the Trinity XOR includes an arpeggiator, which can be used to create rhythmic patterns and melodic sequences.

Can the Bastl Instruments Trinity XOR be integrated with other MIDI devices?

Yes, the Trinity XOR is a MIDI keyboard-operated sound module, making it compatible with other MIDI devices for expanded performance and control options.

What are the standout features of the Bastl Instruments Trinity XOR's sound engine?

The Trinity XOR's sound engine includes an arpeggiator, envelope, LFO, and oscillator, allowing for versatile sound creation and modulation capabilities.
