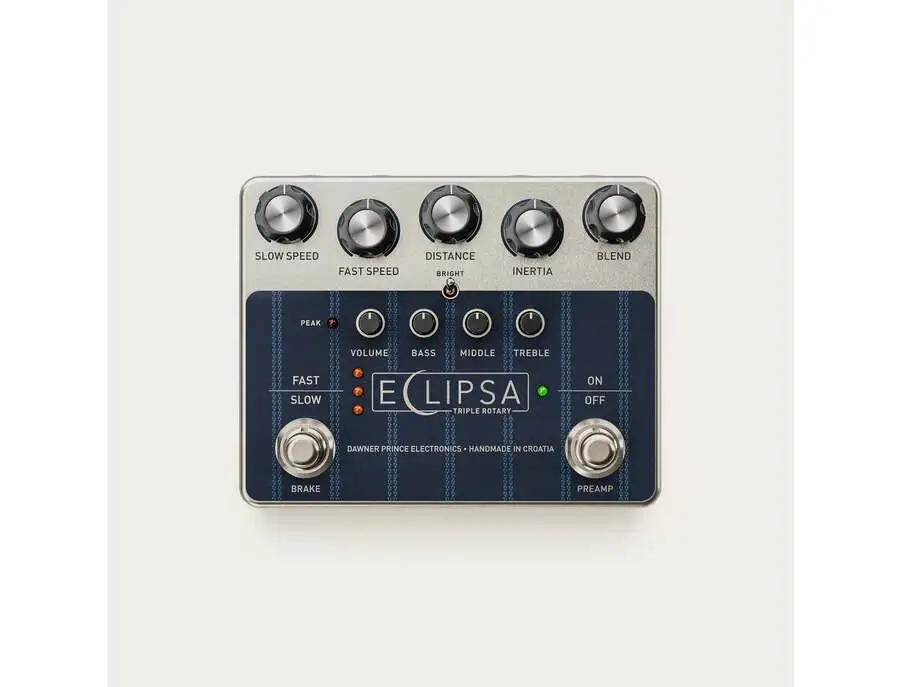

Eclipsa is a full rotary cabinet recreation of the iconic Yamaha RA-200, capturing the movement, depth and tonal complexity of its complete multi-speaker system, where rotating and static drivers interact to create the cabinet’s signature sound. Its rotary engine allows finely tuned control over behavior, with smooth transitions between speeds, adjustable mic simulation distance and a variable mix between rotating and static speakers. An expression input adds continuous speed control, while three LEDs visually track rotors motion and depth settings in real time.

Alongside the rotary cabinet section, Eclipsa also features an Alembic F-2B–style preamp implemented with FET technology, preserving the clarity, warmth and musical response of classic tube design. The preamp’s Volume, Bass, Middle, Treble and Bright controls provide wide tonal flexibility, shaping everything from open, sparkling cleans to more driven, harmonically rich textures. A Peak indicator ensures proper gain staging, making it easy to set the ideal level before feeding the rotary section.

Built for professional rigs, Eclipsa supports both mono and stereo output configurations for live and studio use. A magnetic relay switching system ensures silent and reliable operation, while full MIDI implementation enables comprehensive parameter control across complex rigs. With 127 onboard presets, Eclipsa allows complete performance setups to be stored and recalled with consistency and precision. The custom CNC-machined, anodized aluminum enclosure provides long-term durability and mechanical stability for demanding professional use.

A legendary rotary cabinet and a studio-grade preamp — engineered as a single, uncompromising instrument.

FEATURES:

• Slow Speed - Controls rotary speed in Slow mode.
• Fast Speed - Controls rotary speed in Fast mode.
• Distance - Adjusts the virtual microphone position relative to the rotary cabinet.
• Inertia - Sets acceleration and deceleration time between speed transitions.
• Blend - Mixes the rotary cabinet signal with a static 4×12" speaker simulation.
• Volume - Sets preamp output level and influences saturation. The Peak LED indicates when clipping is approached.
• Bass - Adjusts low-frequency response with warm, musical character.
• Middle - Controls midrange presence and note definition.
• Treble - Sets high-frequency articulation and top-end clarity.
• Bright - Adds subtle high-frequency emphasis at lower Volume settings.
• Instrument / Line Switch - Configures the input stage for guitars, high-output pickups, synthesizers, and line-level equipment.
• True / Buffered Bypass - ON/OFF footswitch with bi-color LED. Hold to switch between True Bypass and buffered Preamp-On modes.
• Fast / Slow / Brake - Tap to switch speeds. Hold to engage Brake mode. Three LEDs indicate rotor speed and Distance settings.
• EXT IN (Expression Input) - Expression pedal input for continuous rotary speed control.
• MIDI In / Thru - Full support for Control Change parameter control and Program Change preset recall (127 presets plus Live Mode), with configurable MIDI channel assignment.
• Stereo Outputs - Left/Mono and Right outputs derived from three virtual microphone signals.

TECHNICAL SPECIFICATIONS:

• Power Input Voltage: 9V DC
• Power Input Connector: 5.5 mm / 2.1 mm barrel (center-negative)
• Power Consumption: ~140 mA
• Size: 3.58” × 4.17” × 1.57”
• Weight: 0.99 lb
