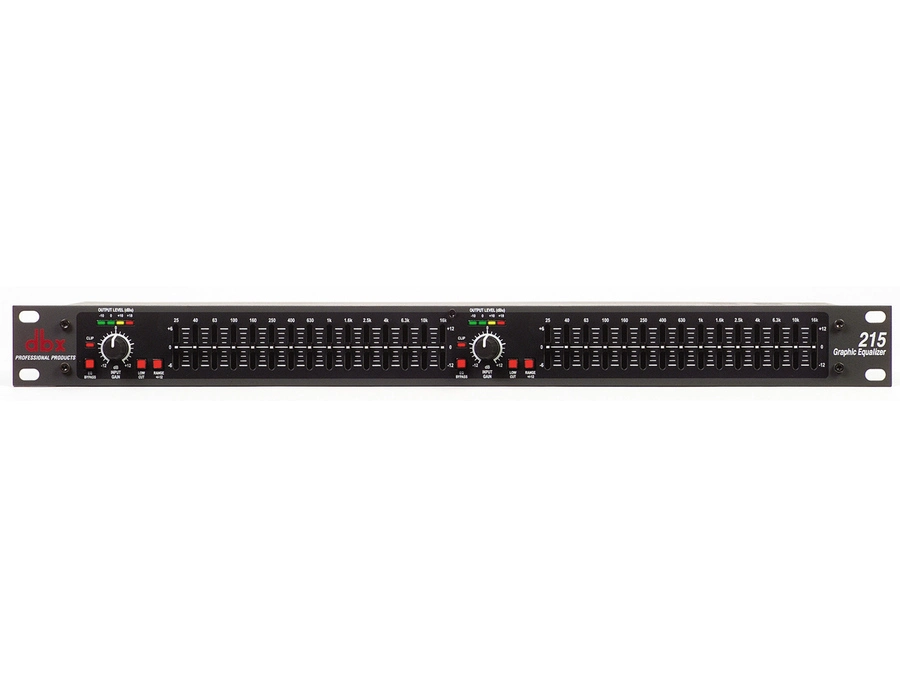

Elevate your audio precision with the dbx 215 Graphic Equalizer, a favorite among professionals for its reliability and unmatched versatility. Designed specifically for demanding sound reinforcement environments, the dbx 215 combines the best of both worlds: professional-grade performance and user-friendly controls. Whether you're setting up in a studio, hitting the road on tour, or installing in a venue, this dual 15-band equalizer with 2/3-octave bands ensures your sound is always pristine.

Featuring a dynamic range that exceeds 108dB and a frequency response from 10Hz to 50kHz, the dbx 215 is engineered to handle any audio challenge. The inclusion of XLR and 1/4" TRS connectors facilitates seamless integration into any setup, while the internal toroidal transformer ensures clean and stable power. With the option to toggle between ±6dB or ±12dB boost/cut ranges, you'll have the flexibility to make precise adjustments on-the-fly.

The unit's intuitive interface, complete with 20 mm faders and 4-segment LED output meters, allows you to monitor and tweak your sound with ease. Plus, thoughtful features like switchable low-cut filters and chassis/signal ground lift provide additional control over your sound, minimizing unwanted noise and ensuring clarity.

Key Features:

• Two 15-band, 2/3-octave Constant Q frequency bands
• Switchable boost/cut ranges of ±6 or ±12 dB
• 12dB per octave, 3dB down @ 50Hz low-cut filter
• ±12 dB input gain range
• XLR and 1/4" TRS inputs and outputs
• 4-segment LED ladders for monitoring output levels
• Internal toroidal transformer for stable power
• Dynamic range of greater than 108dB

Product specs

FAQs

What are the main features of the dbx 215 Graphic Equalizer?

The dbx 215 features dual 15-band, 1/3-octave Constant Q frequency bands, switchable boost/cut ranges of ±6dB or ±12dB, and a front panel bypass switch. It also includes XLR and TRS inputs and outputs, and a dynamic range greater than 108dB.

How does the dbx 215 Graphic Equalizer improve sound quality?

The dbx 215 allows precise control over specific frequency bands with its 15-band graphic equalizer, enabling users to enhance sound clarity and reduce unwanted noise, making it ideal for both studio and live sound applications.

Is the dbx 215 Graphic Equalizer suitable for live sound applications?

Yes, the dbx 215 is well-suited for live sound environments due to its ability to adjust specific frequency ranges, helping to manage feedback and optimize sound clarity in various acoustic settings.

What types of connections are available on the dbx 215 Graphic Equalizer?

The dbx 215 offers both XLR and TRS input and output connections, providing flexibility for integration into different audio setups and ensuring compatibility with a wide range of professional audio equipment.

Does the dbx 215 Graphic Equalizer have a bypass feature?

Yes, the dbx 215 includes a front panel bypass switch, allowing users to easily compare the equalized sound with the original audio signal without disconnecting the unit.
