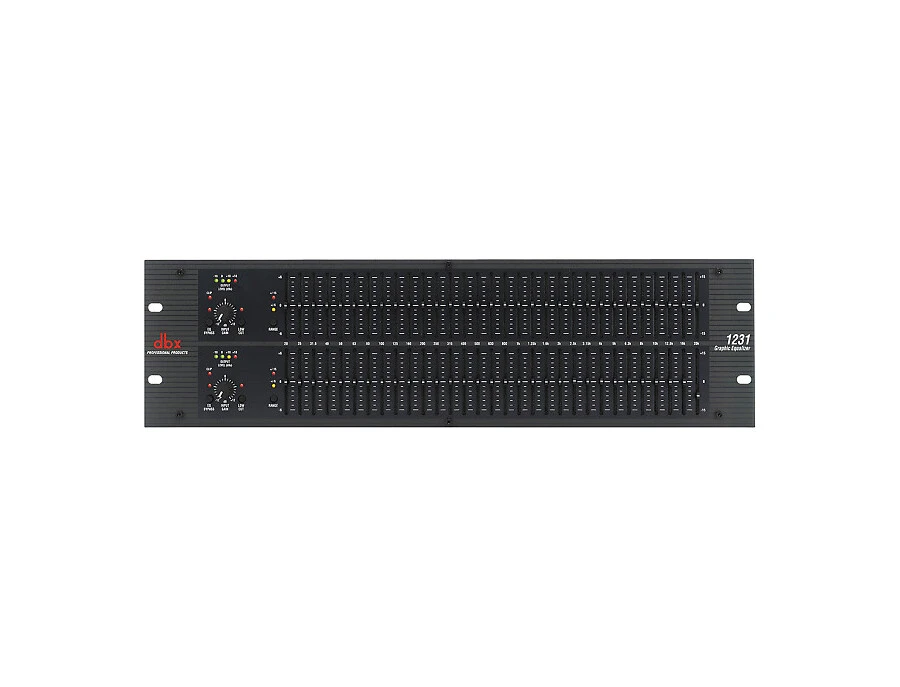

Elevate your sound with precision and control using the dbx 1231 Dual Channel 31-Band EQ. Perfect for both seasoned professionals and enthusiastic amateurs, this dual-channel equalizer offers a comprehensive solution for sound reinforcement and studio environments. Its 31 bands per channel, each with a 1/3 octave slider, allow you to sculpt your sound with exceptional accuracy. The 45mm faders are designed for intuitive operation, letting you make precise adjustments effortlessly.

Whether you're in a live setting or a recording studio, the dbx 1231 ensures superior performance with its active balanced inputs and outputs, as well as RF-filtered connections to maintain signal integrity. The unit provides flexibility with switchable boost/cut ranges of +/- 6dB and +/- 15dB, accommodating a wide array of audio applications. An internal power supply promises reliability, while the chassis/signal ground lift helps isolate and eliminate hum.

Built to withstand the rigors of the road and studio, the dbx 1231 is engineered for durability and long-lasting performance. Its high-pass filters with bypass and magnetically isolated transformer enhance compatibility and operational efficiency, making it a versatile addition to any setup.

Key Features:

• Dual channel 31-band 1/3 octave graphic equalizer
• 45mm center detent sliders for precise gain control
• Switchable boost/cut range: +/- 6dB and +/- 15dB
• Balanced XLR and 1/4" TRS inputs/outputs
• RF-filtered inputs and outputs for improved signal integrity
• High-pass filters with bypass option
• Chassis/signal ground lift capability for quick hum isolation
• Internal power supply with power-off hard-wire relay bypass

Product specs

FAQs

What is the main purpose of the dbx 1231 Dual Channel 31-Band EQ?

The dbx 1231 is designed to provide precise control over your audio signal's frequency spectrum, allowing you to fine-tune the sound for live or studio environments with its dual 31-band graphic equalizer.

Is the dbx 1231 suitable for both live and studio use?

Yes, the dbx 1231 is versatile enough for both live sound reinforcement and studio applications, offering detailed frequency adjustments to match room acoustics or recording needs.

What are the connectivity options available on the dbx 1231?

The dbx 1231 features multiple analog input and output options, including XLR, 1/4" jacks, and barrier strips, making it compatible with various audio setups.

Can the dbx 1231 handle low-frequency adjustments effectively?

Yes, the dbx 1231 includes a low cut filter at 40Hz with an 18 dB/octave slope, which helps manage and reduce unwanted low-frequency noise.

How does the dbx 1231 allow for flexible EQ adjustments?

The dbx 1231 offers switchable boost/cut ranges of ±6 dB and ±15 dB, providing flexibility to make subtle or significant adjustments to your audio signal.
