Unlock the potential of multi-zone audio control with the dbx ZonePRO 641 6x4 Digital Zone Processor. Perfect for venues like restaurants, fitness centers, and retail stores, this versatile processor is designed to deliver seamless control across multiple audio zones. With its six inputs and four outputs, the ZonePRO 641 ensures that each area can have tailored audio settings, making it a go-to choice for system integrators and installers.

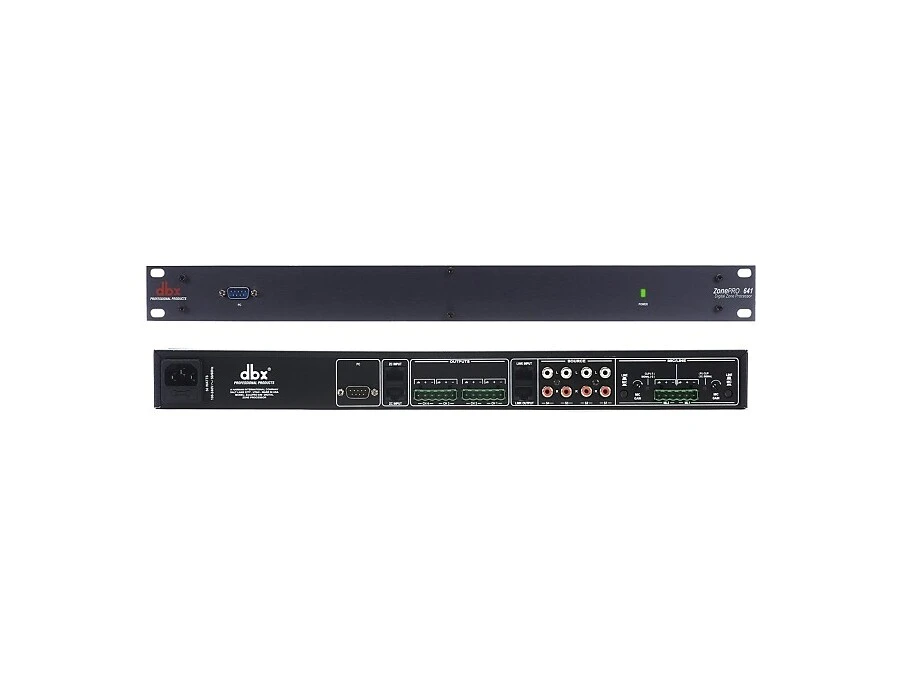

The ZonePRO 641 features two balanced inputs on Euroblock terminals, selectable for line or microphone level with phantom power. Additionally, it offers four pairs of RCA line inputs, each internally summed to mono, providing flexibility in input management. Outputs can be configured for both stereo and mono, accommodating different audio setups effortlessly. Notably, the processor requires a computer for initial setup, which is facilitated through a front-panel DB-9 connector.

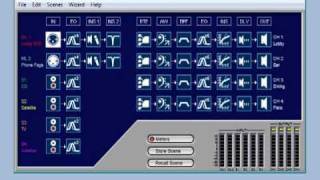

The Windows-based control software offers a powerful suite of processing blocks, including input gain, parametric EQ, compression, and the innovative AutoWarmth module for bass enhancement at low levels. Advanced features like AFS (Advanced Feedback Suppression), de-essing, and customizable signal routing ensure pristine audio quality. Moreover, optional remote wallmount controllers (sold separately) provide convenient local volume control or scene selection within each zone.

With its robust, nonvolatile program memory, the ZonePRO 641 ensures your settings remain secure even in power outages. Its analog input bus allows for scalable applications by sending inputs from one unit to another, while the built-in real-time clock facilitates programmable system changes.

Key Features:

• Six inputs (two balanced, four RCA pairs) and four outputs
• Configurable stereo or mono output
• Windows-based control software via RS-232
• Processing blocks: EQ, compression, limiting, gating, and more
• AutoWarmth module for bass enhancement
• Optional remote wallmount controllers for zone-specific control
• Nonvolatile program memory for secure settings
• Analog input bus for scalable applications

Product specs

FAQs

What is the primary function of the dbx ZonePRO 641 6x4 Digital Zone Processor?

The dbx ZonePRO 641 is designed to manage and route audio signals across multiple zones in a professional audio setup, providing flexible control over sound distribution in venues like restaurants, clubs, or conference centers.

How many inputs and outputs does the dbx ZonePRO 641 offer?

The dbx ZonePRO 641 features six inputs and four outputs, allowing for versatile audio routing and management across different zones within a venue.

Does the dbx ZonePRO 641 support remote control options?

Yes, the dbx ZonePRO 641 can be controlled remotely via compatible wall panel controllers or through a computer interface, offering convenient management of audio settings from a distance.

Can the dbx ZonePRO 641 integrate with an existing audio system?

The dbx ZonePRO 641 is designed to easily integrate with existing audio systems, offering flexible connectivity options to enhance and manage audio distribution efficiently.

What type of venues is the dbx ZonePRO 641 best suited for?

The dbx ZonePRO 641 is ideal for commercial venues such as restaurants, bars, hotels, and conference centers where multiple audio zones need to be managed and controlled.
