Description

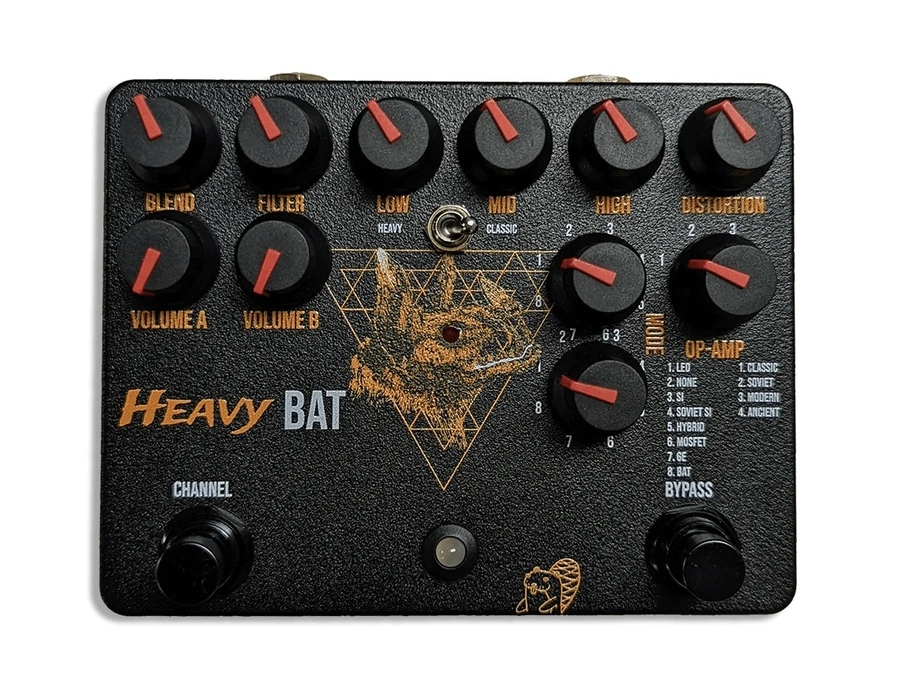

Custom Rat with Blend and HM-2 EQ
Heavy Bat is a modern take on the classic Rat circuit with modifications. The pedal has true bypass, has a rotary switch to select op-amp chips: NOS LM308, UD1408B (Soviet LM308 clone), TL072 (similar to Wampler™️ Ratsbane), and NOS KA741. EQ section has two options: classic Rat filter tone control and three-band EQ similar to Boss™️ HM-2. In addition, you'll get the clean blend controls and 8 clipping diodes options, and two of them could be selected footswitch.
Controls:
Volume A/B - effect output level for each channel. Filter - controls treble frequency response. 3-Band Active EQ - allows to boost or decrease the amount of treble, mids, and bass. Tone toggle switch - allows selecting between classic Rat tone control and HM-2 style EQ. Distortion - controls the amount of drive. Mode rotary switches - 8 diodes options for each channel: LED (2 red LEDs), none (raw op-amp clipping), Si (silicon 1N914), Soviet Si (silicon KD541A), Hybrid (Germanium and Silicon diodes), MOSFET (BS170 transistors), Ge (NOS soviet D9 germanium diodes), BAT (BAT46 Schottky diodes). Op-Amp rotary switch - 4 chips modes: Classic (LM308), Soviet (UD1408B), Modern (TL072), Ancient (KA741). LED brightness trimmers - placed on the PCB trimmers allow you to adjust the status LED brightness for each channel.
Power Supply: 9V DC adapter (Boss-style negative center) not included. No batteries. They are bad for the environment 🌲.
Dimensions: 1590BB, 120mm x 94mm x 33mm
Product specs
| Power | 9V |
| Bypass | true bypass |
| Analog/Digital | analog |
