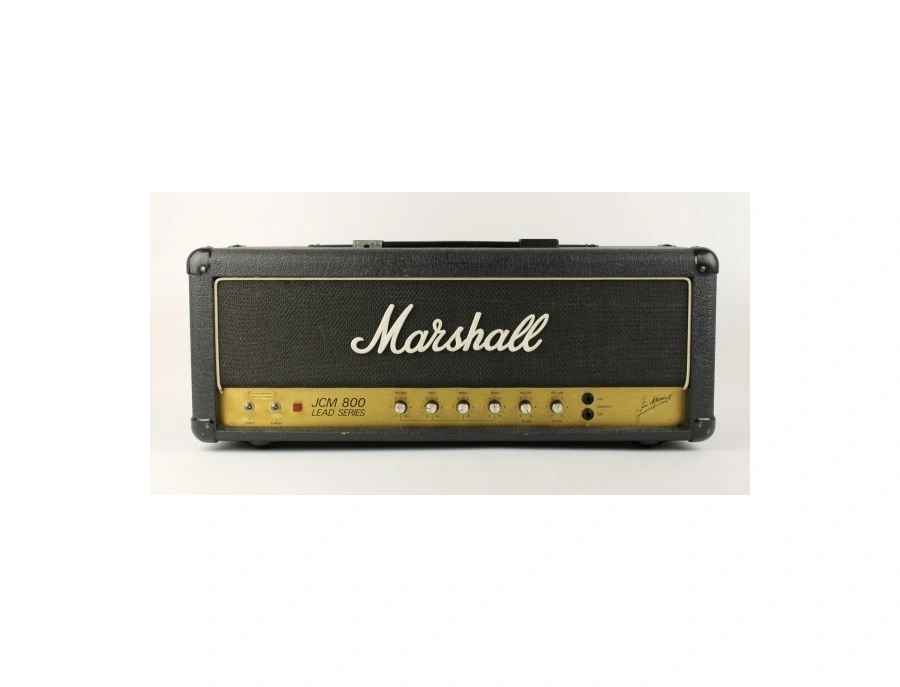

The Canadian CSA JCM 800 2204's, as well as 2203's were produced roughly between 1981-1986. They can be categorized by the fact they have metal toggle switches instead of the typical plastic rocker switches.

Internally they were made with a seperate main board, and the diodes which are normally found on the main board, with Canadian versions they are found on a separate board along with the fuses.

The Canadian versions also have more fuses, with the other biggest difference being that they also have no 16ohm speaker tap.

The reason behind the extra fuses, and no 16ohm taps were strictly for CSA (Canadian Standards Association) compliance which forced very strict safety regulations.

On a UK, or US Marshall, they just have a mains fuse, and HT fuse, but on the Canadian versions they have both those, plus additional Screen Grid Fuses x2, added to protect the screen supply to the power tubes, and Heater Fuse: a low-voltage fuse for the 6.3V heater winding to meet CSA’s fire-prevention rules.

As for the CSA (Canadian Standards Association) deciding to remove 16 ohm taps completely from the amp, the general thinking was, by removing the 16 Ω tap entirely, Marshall (or the importer) could simplify CSA certification and reduce liability, and by leaving a tap unconnected but still present was still seen as a possible risk if users might try to wire it, or improperly wire it, so they actually either used different transformers that didnt have a 16ohm tap wire at all, or they cut them, so that people couldn't try to connect them.

Canadian Marshalls also did not move to the horizontal input jacks, and board mounted pots like the post 1984 UK Marshalls.

All in all, Canadian JCM800's, though they were basically identicle schematically, and parts wise, some say they have a unique sound due to using slightly different transformer models vs their UK/US counterparts. They still used Drake Transformers, but speced a little different, mainly without the 16 ohm taps to meet the demands of CSA at the time. Its said that some had Canadian made Hammond Transformers, but whether thats for sure is inconclusive at this time.

The Canadian JCM800's are definitely somewhat rare compared to UK, and US counterparts with an estimate of around only 1000-1500 units made, vs around 15,000-22,000 UK models total worldwide, and about 3500-5000 US models.
