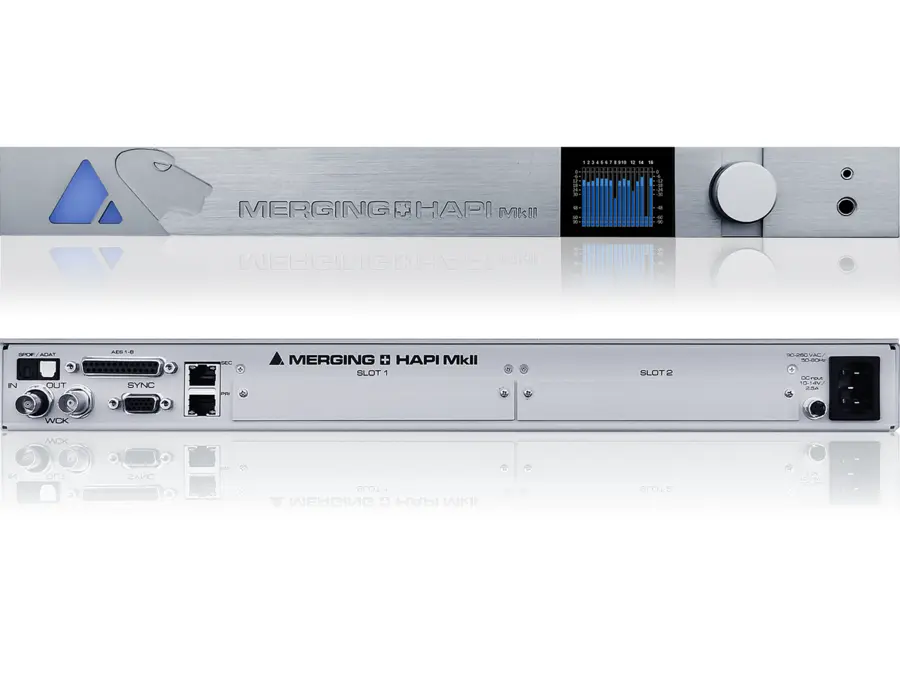

The Merging Technologies HAPI MKII redefines versatility and precision for studio recording gear, offering a seamless blend of modular flexibility and pristine audio quality. This networked audio interface is a powerhouse in a 1 RU form factor, designed for both compact studio setups and expansive broadcast environments. With its Ravenna/AES67 compatibility, you can integrate it effortlessly into any networked audio system, ensuring high-channel counts and superior I/O flexibility.

HAPI MKII boasts two universal I/O slots allowing you to tailor the interface to your unique needs with a range of optional mic/line modules and digital cards. Its ST2022-7 compliance ensures robust performance in IP-based broadcast setups by supporting seamless network redundancy. The unit also features a dual power option, with both AC mains and a 12V DC input, providing reliability and peace of mind during critical sessions.

Whether you're capturing intricate studio recordings or managing complex live sound environments, HAPI MKII's near-zero latency and comprehensive routing capabilities make it an indispensable tool for audio professionals. The intuitive web-based control interface makes remote operation a breeze, enabling adjustments from any web-enabled device.

Key Features:

• Up to 88 inputs and 90 outputs at 1 FS (with optional I/O modules installed)
• Redundant power options: AC mains and 12 VDC power input
• 8 AES/EBU + 8 ADAT or 2 S/PDIF at up to 192 kHz (TOSLINK)
• SYNC I/O (MIDI, LTC, Video Reference)
• Wordclock I/O on BNC
• 2 slots for optional analog and digital I/O modules
• Ravenna/AES67 Compatible (supports Network redundancy and Network Switch mode)
• Browser-based remote access using any web-enabled device
• Near-zero latency from in to out (<1 ms)
• Main rotary control button

Owner's manual

Product specs

FAQs

What are the main connectivity options for the Merging Technologies HAPI MKII?

The HAPI MKII offers 1 x DB-25 for analog inputs, 1 x Optical (S/PDIF, ADAT) for digital inputs and outputs, and 2 x RJ-45 for network connectivity. It also includes a 1/4" and a 1/8" headphone output.

Is the Merging Technologies HAPI MKII compatible with high-resolution audio recording?

Yes, the HAPI MKII supports sample rates up to 384kHz and a bit depth of 32-bit, making it highly suitable for high-resolution audio recording.

Can the HAPI MKII be used in a networked audio setup?

Yes, the HAPI MKII is designed for networked audio environments, supporting Ravenna/AES67 protocols through its RJ-45 connections, allowing seamless integration into complex audio networks.

Does the Merging Technologies HAPI MKII offer redundant power inputs?

Yes, the HAPI MKII features a redundant 12V input, providing an extra layer of reliability for professional recording setups.

What kind of digital clocking options does the HAPI MKII provide?

The HAPI MKII includes 1 x BNC for clock input and 1 x BNC for clock output, ensuring precise synchronization in professional audio environments.
