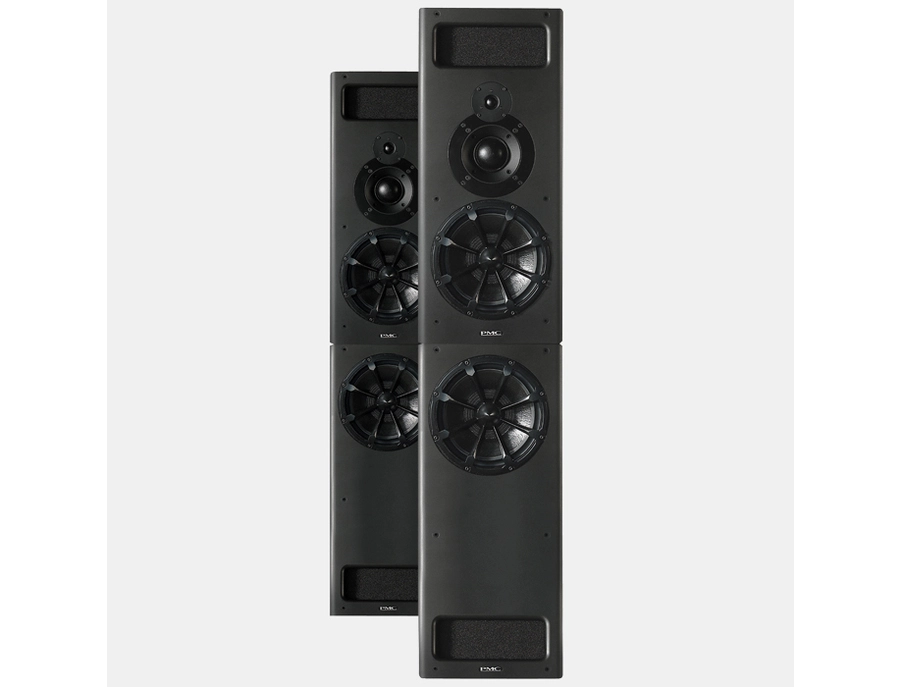

The MB2S XBD is a development of the successful MB2S with increased dynamics and LF performance. The addition of the XBD cabinet containing a second precision 12” Radial™ driver increases the LF headroom by 3dB below 380Hz that allows a larger room to be driven to greater effect. In a surround configuration the added headroom of the XBD allows the .1 surround effects channel to be handled with ease, avoiding the installation of further sub units. The MB2 XBD features in many quality conscious facilities including Studio Hilversum – The Netherlands. The 32 element, 4th order passive crossovers are housed in external enclosures which can be mounted to the rear of the XBD cabinets for improved fidelity.

An ideal monitor for all music recording, mastering and post production in either stereo or surround configuration.

Specifications

• Available Finishes: Neo Black
• Crossover Frequency: 380Hz & 3.8kHz
• Dimensions: H 1740mm/68.50in, W 380mm/14.96in, D 535mm/21.06in
• Drive Units: LF x 2 310mm PMC Radial™ driver, MF 75mm PMC fabric dome, HF 27mm PMC fabric soft dome
• Effective ATL™ Length: 2 x 3m/10ft
• Frequency Response: 20Hz - 25kHz
• Impedance: 4 Ohm nominal
• Input Connectors: 3 Pairs 4mm Sockets (Tri-wire or Tri-amp)
• Sensitivity: 91dB 1W 1m
• Recommended Amp Power: 250-900W
• Weight: 88kgs/193.6lbs
• Amplifier Power per Channel: HF 120W, MF 120W, LF 600W, LF 600W
