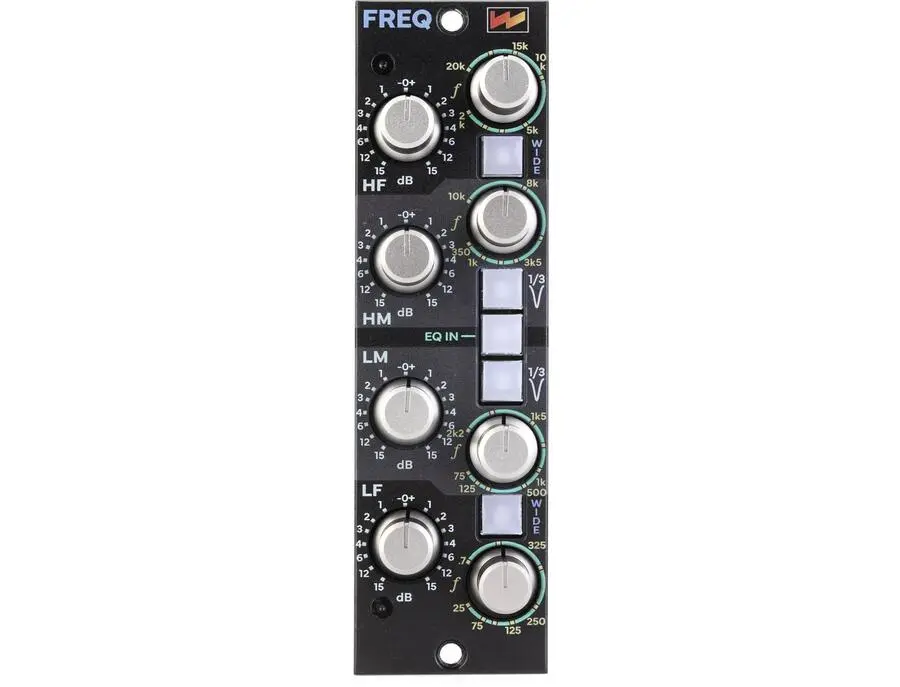

Step into a new era of tonal precision with the Wolff Audio FREQ 500 Series Parametric EQ with Proportional Q. Designed for the discerning audio engineer, this EQ module marries innovative proportional-Q design with the charm of vintage analog warmth. Tailored for versatility, the FREQ allows for intricate tone sculpting, from broad, smooth curves to precise, surgical cuts, offering unmatched flexibility in shaping your sound.

The FREQ's design allows seamless control over the Q factor across its four bands, independent of boost or attenuation levels. This unique approach, along with the Cinemag transformer-balanced output, ensures that each note you shape is delivered with pristine clarity and added depth. Whether you're seeking to add subtle enhancements or need to carve out specific frequencies in the mix, this EQ is your go-to tool.

Perfect for both studio veterans and budding producers, the FREQ's high and low bands offer up to 15dB of boost or cut, while the mid bands provide proportional-Q curves that can be switched to fixed-Q with ease. The overlapping frequency ranges encourage creative techniques like broad boosts combined with narrow cuts, allowing instruments like kick drums to cut through the mix with precision.

Key Features:

• 500 Series equalizer module
• Sweepable 4-band parametric EQ with proportional Q
• HF: 2kHz–20kHz, ±15dB boost/cut, 1/3-octave shelving, Wide mode: 2.5-octave bell curve
• LF: 75Hz–700Hz, ±15dB boost/cut, 1/3-octave shelving, Wide mode: 2.5-octave bell curve
• HMF: 350Hz–10kHz, ±15dB boost/cut, proportional-Q, 1/3 Notch: fixed 1/3-octave bell curve
• LMF: 25Hz–2.2kHz, ±15dB boost/cut, proportional-Q, 1/3 Notch: fixed 1/3-octave bell curve
• Cinemag nickel and steel output transformer
• True hard-wire relay bypass
• Distortion: < 0.03% >100Hz, primarily 3rd-order harmonic <150Hz
• Clipping onset: +28dBu
• Current draw: <100 mA per rail
• Designed and built in Santa Barbara, CA

Product specs

FAQs

What is the main function of the Wolff Audio FREQ 500 Series Parametric EQ?

The Wolff Audio FREQ 500 Series Parametric EQ is designed to shape and enhance audio signals in a studio setting, offering precise control over sound frequencies with its 4-band equalization and proportional Q feature.

How does the proportional Q feature of the Wolff Audio FREQ 500 affect sound shaping?

The proportional Q feature adjusts the bandwidth of each frequency band dynamically, allowing for more musical and natural-sounding equalization by narrowing or widening the Q based on the amount of boost or cut applied.

Is the Wolff Audio FREQ 500 Series suitable for mastering applications?

Yes, with its precise 4-band control and proportional Q, the Wolff Audio FREQ 500 Series can be effectively used for mastering, offering detailed frequency adjustments to fine-tune audio mixes.

Does the Wolff Audio FREQ 500 Series Parametric EQ have a bypass feature?

Yes, the Wolff Audio FREQ 500 Series includes a bypass feature, allowing you to compare the processed and unprocessed signals easily.

What frequency ranges can the Wolff Audio FREQ 500 Series Parametric EQ handle?

The Wolff Audio FREQ 500 covers a wide frequency range: Low (25Hz - 700Hz), Lo-Mid (75Hz - 2kHz), Hi-Mid (320Hz - 10kHz), and High (2kHz - 20kHz), providing comprehensive control over audio shaping.
