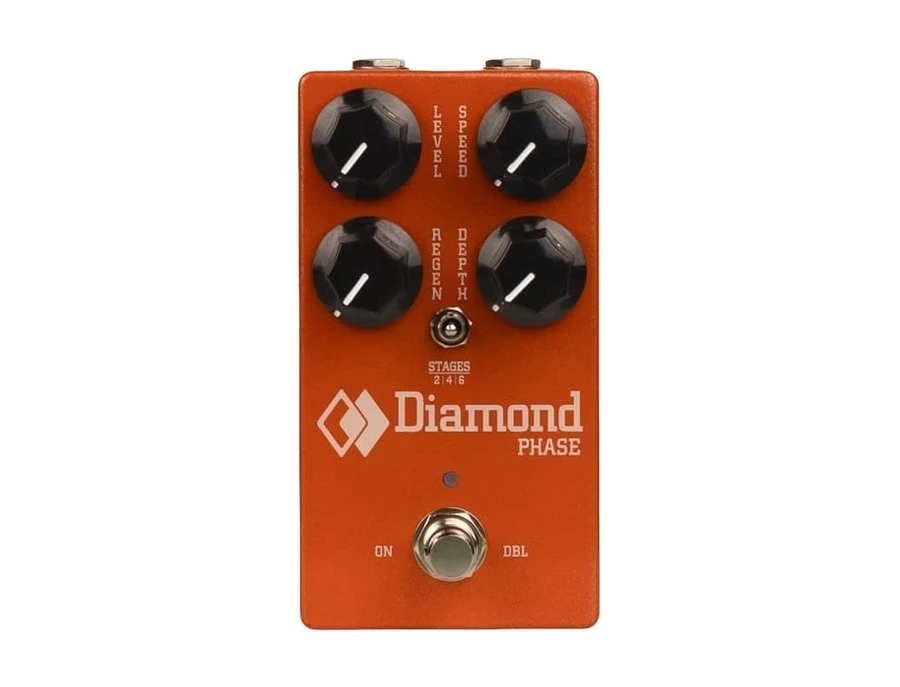

The Diamond Phase is a modern revival of the original Diamond PSH-1 Phase first introduced in 2008—faithfully re-engineered to preserve its unmistakable analog character while meeting the needs of today’s pedalboards.

At its core, the Diamond Phase remains true to the original design, featuring a fully analog audio path built around six carefully selected and matched JFET transistors in every pedal. This approach delivers exceptionally smooth, musical phase shifting with depth, warmth, and clarity that never feels artificial or over-processed.

From barely-there movement to classic swirl and deep, colourful modulation, the Diamond Phase captures the full history of phasing—refined, compact, and unmistakably Diamond.

2/4/6 Stages

A selectable 2-, 4-, or 6-stage architecture gives you three distinct phaser voices in a single pedal:

• 2-Stage Mode offers light modulation and subtle movement, perfect for gentle motion, tone enhancement, and always-on textures that add feel without drawing attention.
• 4-Stage Mode delivers classic, traditional phasing—a sound not previously available in the Diamond phaser—with the familiar, balanced sweep heard on countless iconic recordings.
• 6-Stage Mode provides a throatier, more colorful response, with deeper notches and increased harmonic complexity for bold, expressive, and psychedelic sounds.

JFET Phaser Technology

The Diamond Phase uses a classic JFET-based phaser topology, where each stage is built around a voltage-controlled JFET acting as a variable resistor. As the modulation signal changes, these JFETs shift the phase of the audio signal in a smooth, continuous way. By carefully selecting and matching JFETs, the phase response remains even and musical across all stage modes, avoiding abrupt transitions or uneven sweeps. This approach is responsible for the warm, organic movement and natural feel that define classic analog phasing.

Made For Today

Designed for modern pedalboards, the Diamond Phase features top-mounted jacks and true bypass switching, and is housed in an enclosure that is approximately half the size of the original PSH-1, making it far easier to fit into contemporary setups.

Power is simple and pedalboard-friendly: the Diamond Phase runs on 9–15V standard pedal power and includes an internal voltage pump that boosts the circuit to 15V operation, ensuring clean, consistent performance with no fancy power supplies required.

Technical Info

Input Impedance: > 1MΩ Output Impedance: < 10KΩ Switching: Relay True Bypass Speed Range: 0.1Hz - 10Hz Power Requirement: 9-15 VDC , negative tip, 2.1 mm barrel jack. Current Draw @ 9 VDC : 80mA Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58") Weight: 300 g Made In Canada
