Free The Tone, PT-3D Power Supply

Find out who is using Free The Tone PT-3D

0 wishlisted

1 saved

Page last updated Aug 10, 2025

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

Although it is light and compact, the PT-3D furnishes two completely independent isolated output terminals (9 VDC/500 mA) and six low-noise standard output terminals (9 VDC/100 mA) and can power up to eight lines. The PT-3D’s isolated output terminals can supply current higher than 1 A momentarily required by some digital effects units on boot. After booting of the units, the PT-3D can stably continue to supply required amperage up to 500 mA. This makes the PT-3D, which is designed to supply 9 VDC, applicable to effects units requiring high capacity current (such as DigiTech® WHAMMY DT™/WHAMMY 5™, Eventide® TIME FACTOR/MOD FACTOR/PITCH FACTOR /SPACE/H9, LINE6® DL4™/MM4™/FM4™, Strymon® TIMELINE/MOBIUS). SPECIFICATIONS: 2× Stabilized 9 VDC isolated output terminals (@ max. 500 mA) 6× Stabilized 9 VDC low-noise standard output terminals (@ max. 100 mA) Short-circuit protection circuit in each output Dimensions: 120W × 55D × 35H mm (excl. rubber feet) Weight: approx. 185 g (excl. accessories) Accessories: warranty card, manual, 4× DC cables (L = 30 cm, L/L), 4× DC cables (L = 50 cm, L/L), 1× AC adapter (FA-1220D-JA/UK/EU) NOTE: The supplied DC power cables are not applicable to effects units from Eventide® or LINE6®. Customers need to prepare suitable cables for use with such units. Proper basic operations on the products noted above (DigiTech®, Eventide®, LINE6®, Strymon®) have been confirmed by FREE THE TONE (as of November 11, 2013). However this does not guarantee full operation of each product. Due to modifications or minor changes that might be made by a manufacturer of those products after our confirmation, the above-mentioned products may no longer be compatible with the PT-3D. As a precaution, before connecting, be sure to confirm the power requirements of the device to be connected to the PT-3D. The DC cable supplied with the PT-3D can be used with the following models. DigiTech® WHAMMY DT™/WHAMMY 5™ Strymon® TIMELINE/MOBIUS Strymon® TIMELINE/MOBIUS The PT-3D can be used for the following models by using the FREE THE TONE conversion cable “CP-R25CV”. Eventide® TIME FACTOR/MOD FACTOR/PITCH FACTOR/SPACE LINE6® DL4™/MM4™/FM4™

Reviews

Add review

Based on 0 Reviews and 0 Ratings

5 star

4 star

3 star

2 star

1 star

Artist usage

Add artist

MISA

Bassist

Band-Maid

Verified via Photo

Instagam picture of her full board

Miku Kobato

Singer, Guitarist

Band-Maid

Verified via Photo

Picture showing 2 pages of the 2019 book "Band-Maid: The Day before World Domination", that is sold on Band-Maid's official shop. These pages describe Miku's gear. The power supply can be seen at the very front of the pedalboard, behind the sharks.

Hisako Tabuchi

Singer, Guitarist

Number Girl

Verified via Photo

The photo from Hisako's twitter above in the center shows this power supply

Bohte "BOH" Saisuke

Bassist

BABYMETAL

Verified via Photo

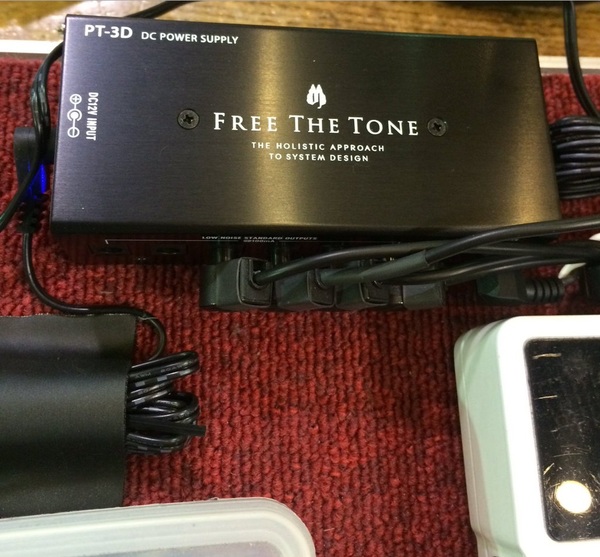

This photo, taken by Boh and posted onto his twitter account on March 2nd, shows his new Power Supply for his Pedalboard, the FREE THE TONE PT-3D. He mentions that he likes that it is light weight, small, and seems not to have as much interference.

Actual Quote - Translated "Change the power supply to the PT-3D of FREE THE TONE! Capacity to be large no longer be noise that was in the mood! Light and compact to be good (^ ^ Nyu) "

Naoya Ogura

Guitarist

Mass of the Fermenting Dregs

Verified

On an older Board to see here in the Picture https://twitter.com/naoyaogura/status/1209647593178857472 , Naoya Ogura's pedalboard clearly has a Free The Tone, PT-3D Power Supply.
