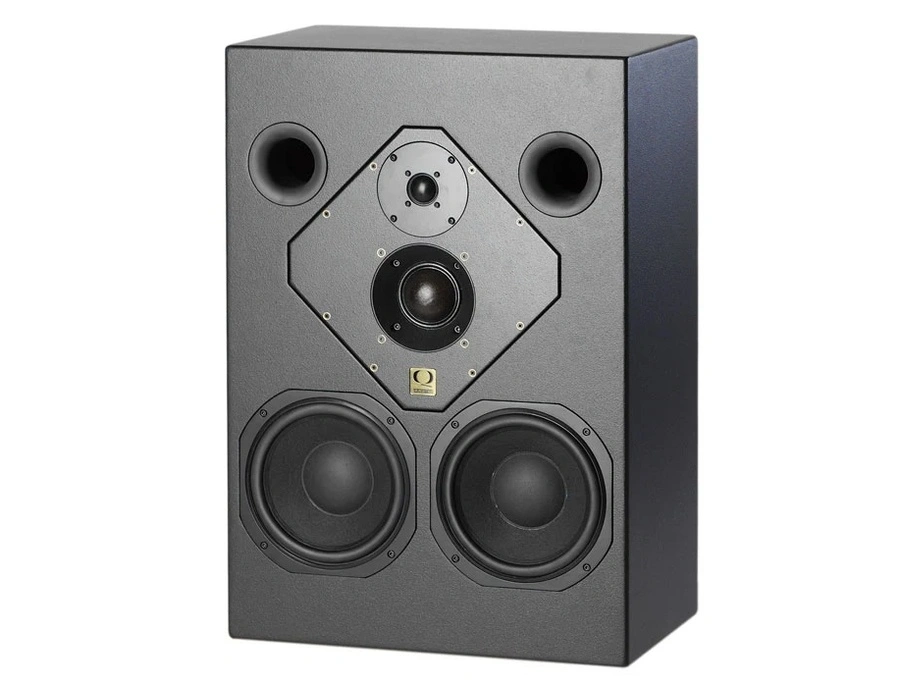

The Q210 is an extremely powerful compact monitor.

Although perfectly suited to soffit mounting, the Q210d's compact dimensions and rotate-able mid-hi baffle make it ideal as a mid-field monitor when main monitor performance is required.

It may be used in isolation or combined with Quested's X15 Subwoofer or the QSB1118 sub-woofer, a perfect choices for 5.1 / 6.1 installations.

The monitors are supplied with a separate dedicated electronics package, 19" rack mounting power amplifiers and electronic crossover / loudspeaker management system.

Applications: Soffit mounted or free standing main monitor.

• Size: 590(w] x 850(h) x 355(d) mm (Mounted Vertically) | 850(w] x 590(h) x 355(d) mm (Mounted Horizontally)
• Weight: 70 kgs
• Drivers: Bass cone: 2 x254 mm (10"), Midrange: 1x75mm (3"), High Frequency 1x37mm (1.5")
• Maximum SPL: 123dB at 1m
• Frequency Response: 38Hz - 20KHz +/- 2 dB
• Input Connectors: 1 x triple-pair gold plated binding posts accept bare ends or 4mm banana plugs
• Amplifier power: Bass 1250 W RMS into 4 Ohms, Mid 450 W RMS into 8 Ohms, High 450W RMS into 8 Ohms
• High Crossover Point: Linkwitz-Riley 4k5Hz, 24dB/oct
• Low Crossover Point: Linkwitz-Riley 450Hz, 24dB/oct
• Electronics (Pair): Amplifier 2 x AP800 & 1 x AP1300 (see AP800 / AP1300 specification)
• Crossover: 1xSM748 (see SM748 specification)

*Low frequency response is dependent no room size/acoustics. All specifications subject to confirmation by Quested.
