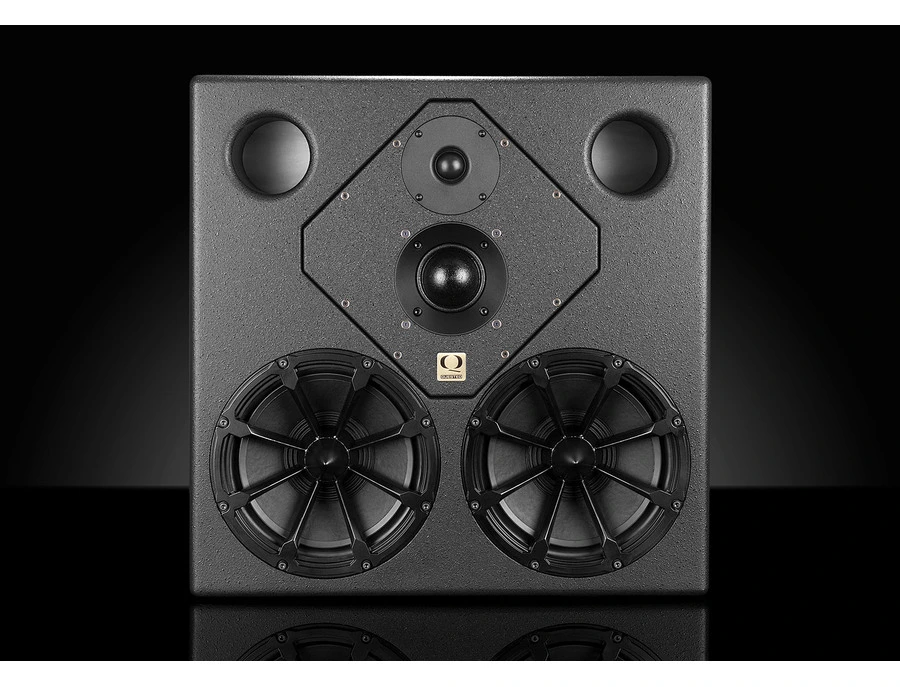

The Q212 was the first "Quested" production monitor. It has been refined over the past 20 years, evolving into the current model.

The original Q212 system was installed at the innovative Rooster studios in London and is still in service. Newer systems include Trevor Horn's 5.1 set-up in SARM Studios London.

A three-way active system with remote electronics the Q212 is as appropriate as ever for the mid-sized control room needing superlative monitoring.

The monitors are supplied with a separate dedicated electronics package, 19" rack mounting power amplifiers and electronic crossover / loudspeaker management system.

Typical Applications: main monitors in mid-sized control rooms, components of multi-channel systems in large control rooms.

• Size (WxHxD): 700(w) x 700(h) x 640(d) mm
• Weight: 80 kgs
• Drivers: Bass cone: 2 x 305 mm (12"), Midrange: 1 x 75mm (3"), High Frequency 1 x 37mm (1.5")
• Maximum SPL: 126dB at 1m
• Frequency Response: 20Hz* - 20KHz +/-2 dB
• Input Connector: 2 x twin-pair gold plated binding posts accept bare ends or 4mm banana plugs
• Amplifier power: Bass 1550 W RMS into 4 Ohms, Mid 475 W RMS into 8 Ohms, High 475 W RMS into 8 Ohms
• High Crossover Point: Linkwitz-Riley 4k5Hz, 24dB/oct
• Lower Crossover Point: Linkwitz-Riley 450Hz, 24dB/oct
• Electronics (Pair): Amplifier 2 x AP950-2 & 1 x AP1550-2
• Crossover: 1 x Quested SM748, 4-in/8-out Processor

*Low frequency response is dependent on room size/acoustics. All specifications subject to confirmation by Quested
