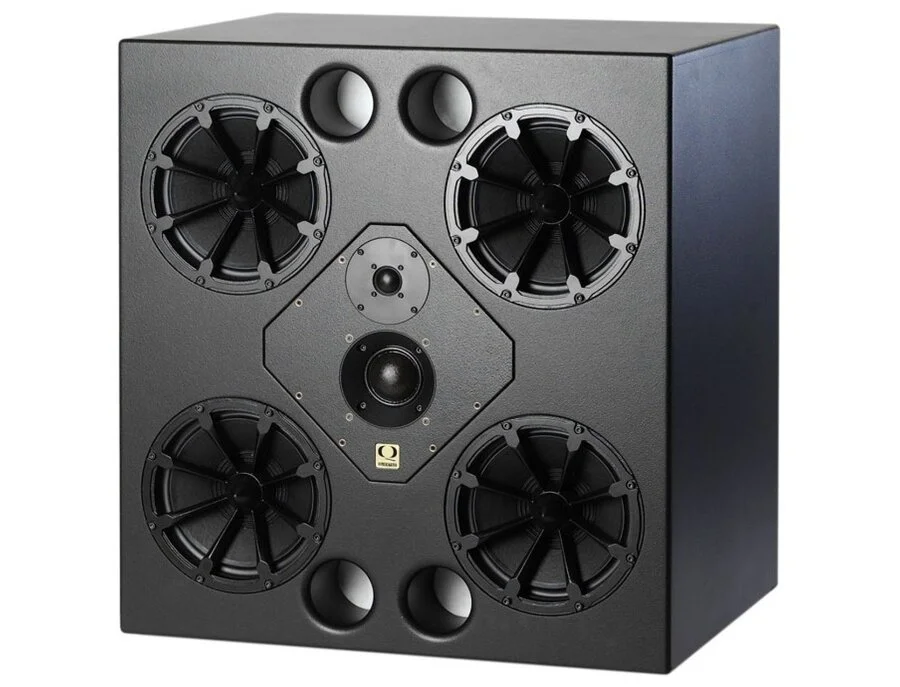

Quested's largest 3-way monitor, the Q412 was the first studio monitor to utilise four 12" bass drivers in place of the standard two 15" configuration.

The advantages are faster bass transients, less distortion, and an extended low frequency response.

Manfred Mann's Workhouse Studio took delivery of the first of our 412 systems in the early eighties.

The Q412 is designed to be soffit mounted. The monitors are supplied with a separate dedicated electronics package, 19" rack mounting power amplifiers and electronic crossover / loudspeaker management system.

Application: main monitor for large control rooms.

• Size (WxHxD): 940(w) x 880(h) × 670(d) mm (Mounted Horizontally), 880(w) x 940(h) x 670(d) mm (Mounted Vertically)
• Weight: 130 kgs
• Drivers: Bass cone: 4 x 305 mm (12), Midrange: 1 x 75mm (3"), HighFrequency 1 x 37mm (1.5'")
• Maximum: SPL 130dB at 1m
• Frequency Response: 20Hz* - 20KHz +/-2 dB
• Input Connector: 3 x twin-pair gold plated binding posts accept 4mm banana plugs or bare ends
• Amplifier power: Bass 1850 W RMS into 2 Ohms, Mid 475 W RMS into 8 Ohms, High 475 W RMS into 8 Ohms
• High Crossover Point: Linkwitz-Riley 4k5Hz, 24dB/oct
• Lower Crossover Point: Linkwitz-Riley 450Hz, 24dB/oct
• Electronics (Pair): Amplifier 2 x AP950-2 & 1 x AP1550-2 (or AP2800=4 if used with Subwoofers)
• Crossover: 1 x SM748

*Low frequency response is dependent on room size/acoustics. All specifications subject to confirmation by Quested
