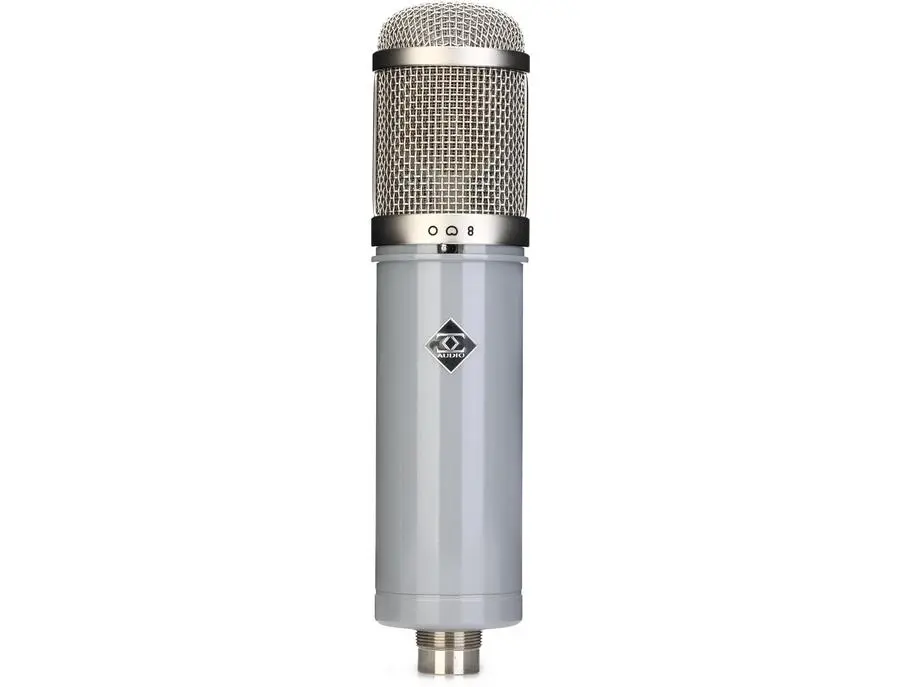

The ADK Microphones Custom Shop Berlin 47-T is a testament to the art of capturing sound with precision and warmth. Designed to emulate the revered vintage German mics, this large-diaphragm multipattern condenser microphone offers an exceptional sonic palette that appeals to both the seasoned studio engineer and the aspiring bedroom producer. Whether you're recording the subtleties of a vocal line, the resonant depth of a grand piano, or the robust tones of a bass cabinet, the Berlin 47-T delivers with stunning fidelity.

At the heart of its design is a proprietary circuit combined with a custom Carnhill transformer, offering a tube-like saturation that enhances even-order harmonics. This feature makes vocals, particularly male, sound full-bodied and vibrant, allowing them to stand out in any mix. With three switchable polar patterns—cardioid, omnidirectional, and figure-8—this microphone provides a versatile recording experience that suits a multitude of environments and applications. From capturing intimate vocal performances to ambient orchestral recordings, the Berlin 47-T is built to excel.

Crafted with input from a global community of audio professionals, the ADK Berlin 47-T stands as a paragon of modern engineering fused with vintage charm. Its minimalist circuit paths and premium components ensure a dynamic range and low self-noise that surpass even the classics it draws inspiration from.

Key Features:

• Large-diaphragm FET condenser microphone
• 27.5mm pressure gradient transducer
• Three polar patterns: cardioid, figure-8, omnidirectional
• Frequency range: 20Hz–20kHz
• Dual highpass filters: 75Hz, 150Hz
• Switchable 8dB and 16dB pads
• Sensitivity: -38dB (12.6mV/Pa)
• Output impedance: 200 ohms
• Equivalent noise (A-weighted): 14dB
• S/N ratio (A-weighted, rel 1Pa): 80dB
• Maximum SPL: 139dB (with 16dB pad engaged)
• Dynamic range: 125dB
• Supply voltage: 48V (phantom powered)
• Handcrafted in the US

Product specs

FAQs

What polar patterns are available on the ADK Berlin 47-T microphone?

The ADK Berlin 47-T offers three polar patterns: cardioid, figure-8, and omnidirectional, making it versatile for various recording applications.

Is the ADK Berlin 47-T microphone suitable for vocal recording?

Yes, the ADK Berlin 47-T is well-suited for vocal recording due to its large diaphragm and multi-pattern capabilities, providing a rich and detailed sound.

What is the maximum sound pressure level (SPL) the ADK Berlin 47-T can handle?

The ADK Berlin 47-T can handle a maximum SPL of 139dB, making it capable of recording loud sources without distortion.

Does the ADK Berlin 47-T require phantom power?

Yes, the ADK Berlin 47-T requires 48V phantom power for operation, which is standard for most condenser microphones.

What accessories are included with the ADK Berlin 47-T microphone?

The ADK Berlin 47-T comes with a case, ring mount, and shockmount, providing essential tools for setup and protection.
