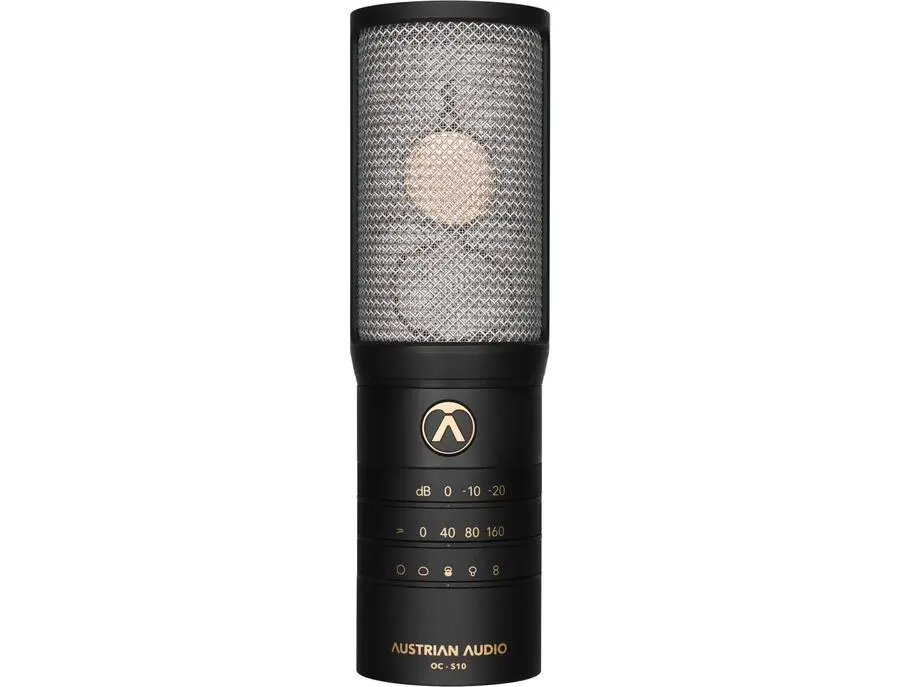

Discover a new level of recording excellence with the Austrian Audio OC-S10 Microphone, meticulously crafted in Vienna, the heart of musical innovation. This large-diaphragm condenser microphone stands out with its proprietary CKR12 capsule, designed for capturing unparalleled sonic detail. The OC-S10 is a versatile powerhouse, boasting five selectable polar patterns—omnidirectional, subcardioid, cardioid, hypercardioid, and bi-directional—ensuring you capture every nuance of your performance with precision.

The OC-S10's dual-output system is a game-changer, allowing users to record the front and rear capsule signals independently. This feature, combined with Austrian Audio’s innovative plug-in suite, lets you customize polar patterns post-recording, giving you the flexibility to shape your sound like never before. Whether you’re recording delicate vocals or powerful instrumentals, the OC-S10 adapts effortlessly with its highpass filters and switchable attenuation pads that handle up to 157 dB SPL.

Complete with an elastic suspension, a magnetic metal-mesh pop filter, and a wooden storage box, the OC-S10 is not just a microphone; it's an invitation to push the boundaries of your creativity.

Key Features:

• Large-diaphragm condenser microphone with dual outputs
• Handmade CKR12 capsule for superior sound capture
• Five selectable polar patterns: omni, subcardioid, cardioid, hypercardioid, bi-directional
• Frequency range: 20 Hz - 20,000 Hz
• Sensitivity: 14 mV/Pa
• Max SPL: 147 dB / 157 dB (with pad)
• Low cut filters at 40 Hz, 80 Hz, and 160 Hz
• Switchable pads: -10dB / -20dB
• Includes elastic suspension, pop filter, and wooden box
• Requires 48 V phantom power

Product specs

FAQs

What polar patterns are available on the Austrian Audio OC-S10 Microphone?

The Austrian Audio OC-S10 Microphone features multiple polar patterns including Omni, Wide Cardioid, Cardioid, Hypercardioid, and Figure-8, offering versatile recording options for various applications.

Is the Austrian Audio OC-S10 Microphone suitable for high sound pressure levels?

Yes, the OC-S10 can handle a maximum sound pressure level of 147dB, making it suitable for recording loud sources such as drums and amplified instruments.

What kind of power source does the Austrian Audio OC-S10 Microphone require?

The Austrian Audio OC-S10 Microphone requires 48V phantom power to operate, which is typically supplied by most audio interfaces and mixing consoles.

Does the Austrian Audio OC-S10 Microphone come with any additional accessories?

Yes, the OC-S10 comes with a shockmount, pop filter, and a case, providing essential accessories for optimal recording and protection.

How does the low cut filter on the Austrian Audio OC-S10 Microphone work?

The OC-S10 features a low cut filter with three settings at 40Hz, 80Hz, and 160Hz, allowing you to reduce low-frequency noise and rumble for cleaner recordings.

What is the output impedance of the Austrian Audio OC-S10 Microphone?

The output impedance of the OC-S10 is 108 ohms, ensuring compatibility with a wide range of preamps and audio interfaces.
