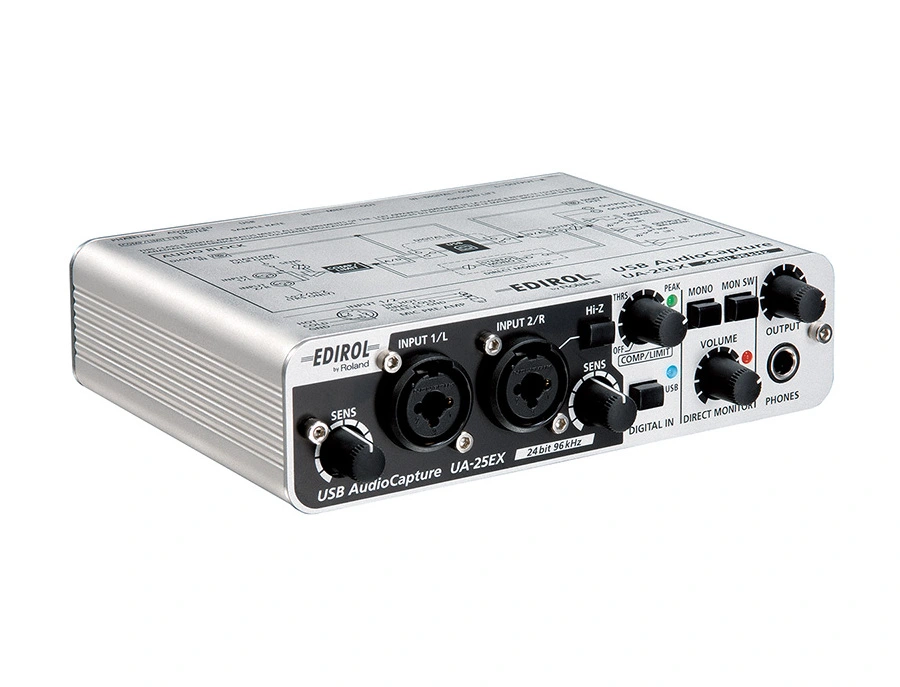

Edirol UA-25EX

4.5 (9)

1 Critic Review

2 Reviews

Find out who is using EDIROL UA-25EX

1 community setup

0 wishlisted

14 saved

Page last updated Feb 14, 2026

Pricing and availability

Store

Reviews

Price

^* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.

Description

Edit description

The EDIROL UA-25EX is a robust and versatile audio interface that bridges the gap between professional studio quality and ultimate portability. Built to handle the demands of both the studio and the road, this 2x2 24-bit/96kHz USB interface delivers pristine sound with its superior mic preamps and balanced inputs/outputs. Whether you're a seasoned engineer or an aspiring creator, the UA-25EX equips you with the essential tools for high-quality recording and production.

Crafted with a durable metal chassis, the UA-25EX ensures your setup is safeguarded against interference and physical wear. Its integrated analog compressor and limiter help maintain clean, distortion-free recordings by providing smooth dynamic control from the onset. A unique ground-lift feature further enhances its utility by eliminating unwanted noise in varied recording environments.

The UA-25EX is USB bus powered, meaning you can take it anywhere without worrying about additional power supplies. It's compatible with both Mac and Windows, and supports major DAWs, making it a seamless addition to any digital workflow. Plus, with the bundled Cakewalk Production Plus Pack, including SONAR LE and Project5 LE, you're ready to dive into PC-based recording straight out of the box.

Key Features:

High-resolution 24-bit/96kHz performance
Premium mic preamps with XLR/TRS combo jacks and 48V phantom power
Integrated analog compressor and limiter for dynamic control
USB bus powered for portability
S/PDIF optical I/O, MIDI in/out, and Hi-Z port for direct guitar connection
Ground-lift switch to reduce noise
Compatible with both Mac and Windows platforms
Includes Cakewalk Production Plus Pack for PC recording

Product specs

DIGITAL IN SWITCH = OFF	Full duplex (except for 96 kHz setting)
DIGITAL IN SWITCH = ON	Recording only
Computer Interface	24-bit (ADVANCE SWITCH=OFF: 16-bit)
AD/DA Conversion	44.1/48/96kHz (ADVANCE SWITCH=OFF: 44.1kHz only)
Digital output	44.1/48/96kHz
Digital input	44.1/48/96kHz
96.0kHz	20Hz to 40kHz (+0dB/-2dB)
48.0kHz	20Hz to 22kHz (+0dB/-1dB)
44.1kHz	20Hz to 20 kHz (+0dB/-1dB)
XLR Input (Left/Right)	-60 to -20dBu
1/4" TRS Input (Left/Right)	-36 to +4dBu
Maximum Input level	+ 12dB
1/4" TRS Output (Left/Right)	+4 dBu (balanced)
RCA Output (Left/Right)	-2 dBu
Maximum Output level	Nominal Output Level + 12 dB
Output Jack	-96 dBu (S/N ratio: 105 dB) (input terminated with 1 k O, OUTPUT VOLUME: max., INPUT MONITOR: min., IHF-A, typ.)
Input (Left/Right)	XLR (balanced, phantom power +48V), 1/4" TRS (balanced)
Input Jack R	Hi-Z (high impedance) is supported
Headphone Out	Stereo 1/4"
Digital Input Connector	Optical
Digital Output Connector	Optical
Output Jacks (L/R)	1/4" TRS (balanced), RCA
MIDI Connectors	IN/OUT
USB Connector	Type B
Power Supply	USB Bus Power
Current Draw	480 mA
Size and Weight (WxDxH)	164mm x 133mm x 64mm or 6-1/2" x 5-1/4" x 2-9/16"
Weight	0.6kg (1lb. 4 oz.)
OS	Mac OS X 10.3.9 or later
Computer	Apple Macintosh series with on-board USB port
CPU/Clock	Intel Processor or PowerPC G4/867MHz or higher
Memory(RAM)	256MB or more (512MB or more is recommended)
Operating System	Windows XP/Vista only
Processor	Intel Pentium 4 1.3 GHz or AMD Athlon XP 1500+ RAM - 256 MB RAM
Hard Drive	100MB free hard disk space
Screen Resolution	1024 X 768, 16-bit color CD-ROM drive (for installation) Windows-compatible audio card/interface

FAQs

What are the main connectivity options for the EDIROL UA-25EX audio interface?: The EDIROL UA-25EX features USB Type B for computer connection, XLR and 1/4" TRS inputs for audio, optical digital input/output, RCA outputs, and MIDI IN/OUT ports for MIDI devices.
Is the EDIROL UA-25EX compatible with Mac and Windows operating systems?: Yes, the EDIROL UA-25EX is compatible with Mac OS X 10.3.9 or later and Windows XP/Vista, providing flexibility for different user setups.
Does the EDIROL UA-25EX support phantom power for condenser microphones?: Yes, the EDIROL UA-25EX provides +48V phantom power through its XLR inputs, allowing you to use condenser microphones for professional-grade recordings.
How does the EDIROL UA-25EX handle latency during recording?: The EDIROL UA-25EX offers zero-latency, direct monitoring, ensuring real-time audio feedback without delay during recording sessions.
What is the maximum audio resolution supported by the EDIROL UA-25EX?: The EDIROL UA-25EX supports high-resolution recording and playback up to 24-bit/96kHz, delivering professional-quality audio.
Can the EDIROL UA-25EX be used for live performances?: Yes, the EDIROL UA-25EX features direct-box functionality and is USB bus-powered, making it suitable for noise-free live stage use without the need for an AC adapter.

Reviews

Add review

Owner Insights

We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about EDIROL UA-25EX.

Software and compatibility

0 0

Some users have successfully operated the UA-25EX with Windows 11, despite no official driver updates from Roland for this version.
Source
0 0

It's noted that Windows 11 might use generic drivers that allow the UA-25EX to function without specific Roland updates.
Source

Use cases and applications

0 0

The UA-25EX is considered suitable for basic bedroom recording setups, especially for those needing a budget-friendly option.
Source

Value and pricing

0 0

The UA-25EX is available at a low price point, making it an attractive temporary solution for users needing a quick setup.
Source
0 0

Some owners feel 70 euros is overpriced for the UA-25EX, suggesting a 30-euro max price reflects its current value.
Source
