The Prismatic Wall by Electronic Audio Experiments is a sympathetic resonator designed to transform incoming sounds into the vibrations of an illusory array of strings.

Its metallic yet warm timbres range from the subtle harmonic aura of a third bridge to the rich chromatic beatings of a grand piano.

The simulated vibrations form a sustained spectral extension of your instrument, maintaining a tangible physicality despite their surreal overtones.

The resonances are inherently reactive: Playing in tune stimulates specific pitches, while percussive attacks excite all the strings in tandem.

Analog/digital hybrid signal processing (24 bit, variable sample rate) paired with analog filtering and emphasis, for low noise with a colorful character

High headroom analog dry path and mixer

Comprehensive digital control of every function using a 32-bit processor system that seamlessly integrates with the analog signal path.

Performance-friendly expression morphing functionality with intelligent momentary/latching behavior and adjustable rise/fall times

Full MIDI implementation (CCs and presets) for all parameters, analog and digital

16 preset slots: 3 via the front panel, the rest via MIDI

CTRL jack for MIDI, expression, and CV input

Multi-mode, assignable LFO with periodic and random waveforms

Updatable firmware via MIDI Sysex messages

Bypass switching: Electronic bypass with buffered or Trails modes.

Input impedance @ 1kHz: 1MΩ

Output impedance @ 1kHz: 1kΩ

Power: 9VDC, 2.1mm center negative barrel. Current draw is 120mA max.

We recommend a regulated, isolated power supply rated for 200mA minimum to accommodate startup surges. The DC input is protected against reverse polarity and over-voltage up to 24V. Our pedals do not accept batteries.

All Electronic Audio Experiments pedals come with a warranty tied to the original owner.

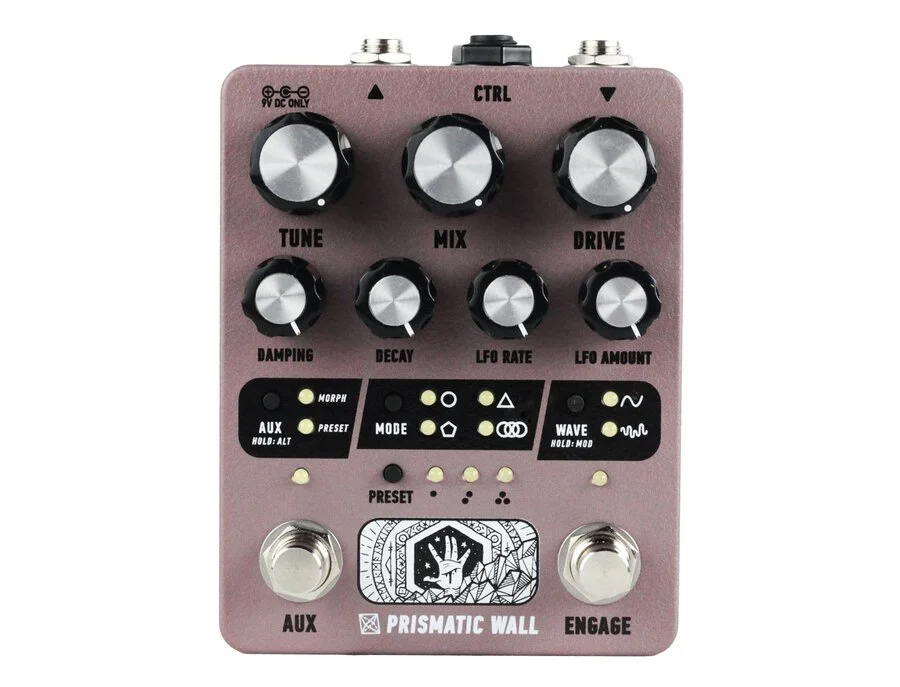

Tune: adjusts the pitch of the resonators across a four octave range

Mix: wet/dry blend

Drive: sets the signal level driving the resonator, with overload at higher settings

Damping: high frequency decay of the resonators

Decay: overall decay time of the resonators; at its upper range also adds analog feedback to create infinite drones

LFO Rate: LFO speed; modulates Tune by default

LFO Amount: LFO amplitude

Mode Button: selects between four string spacing modes: single w/ harmonic overtones, stacked neutral thirds, stacked fifths, and chromatic

Wave Button: selects the LFO waveform between periodic and random modes. Long press to access the Mod page.

Engage Footswitch: activates the pedal. Long press to toggle trails/standard bypass modes.

Aux Footswitch: the footswitch behavior depends on the Aux button setting. In Morph mode, Aux will jump between two distinct knob settings with intelligent momentary/latching behavior. In Preset mode, Aux will scroll through the first three presets.

Aux Button: determines the behavior of the Aux footswitch. Long press to access alt functions, and press again to return to the panel.

Product specs

FAQs

What kind of effects does the Electronic Audio Experiments Prismatic Wall offer?

The Prismatic Wall combines guitar synth and reverb effects, allowing for a wide range of sonic textures from ambient washes to complex, layered soundscapes.

Is the Prismatic Wall suitable for both guitar and bass?

Yes, the Prismatic Wall is designed to work well with both guitar and bass, providing rich and immersive effects for both instruments.

Does the Prismatic Wall require a specific power supply?

The Prismatic Wall requires a standard 9V DC power supply, common to most pedalboards, ensuring easy integration into existing setups.

How does the Prismatic Wall differ from other reverb pedals?

Unlike typical reverb pedals, the Prismatic Wall incorporates synth-like modulation and expansive soundscapes, offering a unique blend of reverb and synth textures.

Can the Prismatic Wall be used for live performances?

Yes, the Prismatic Wall is well-suited for live performances, providing versatile sound options and easy pedalboard integration for dynamic stage use.
