Xotic Effects Wah XW-1
Xotic Effects Wah XW-1
An easy-to-use wah for unlimited sound possibilities.

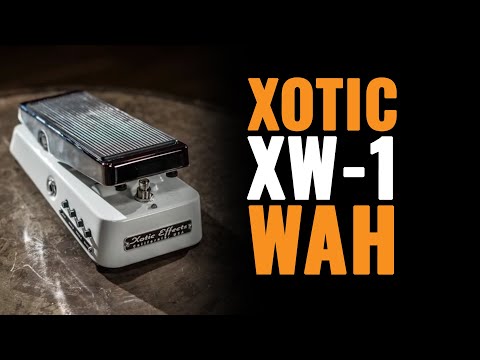

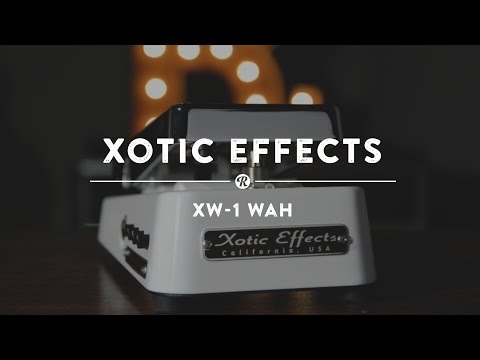

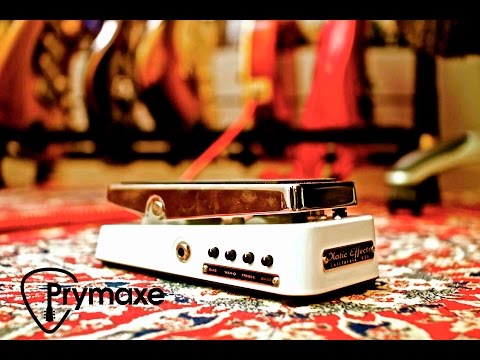

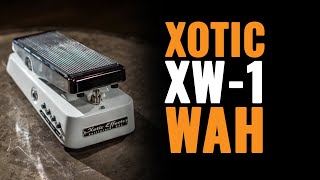

Xotic Effects Wah XW-1 is based on the Holy Grail wah, 1967-1968 Italian-built Clyde McCoy Wahs. With the Xotic XW-1 you don't get one or three sounds in one pedal, you get unlimited sounds with unique controls that shape and contour your sound the way you hear it. The adjustability and flexibility of the XW-1 makes this one of the most versatile wah pedals available today.
With the XW-1 you will enjoy some exciting and innovative features including:
¢ Self-lubricating nylon bushing pivot for quiet and smooth operation with fully-adjustable rocker pedal tension
¢ Gold contact relay true bypassing, which allows for transparent true bypass tone, while incorporating ultra reliable switching with minimum one million life cycle
¢ 20% smaller footprint than conventional wah pedals
¢ Fully adjustable Wah-Q and Bias controls and a two-band EQ with +/-15 dB center-detent potentiometers optimize the voicing for different playing styles and gear
¢ Fuzz-friendly buffering circuit assures a great sounding wah tone with your favorite fuzz pedals

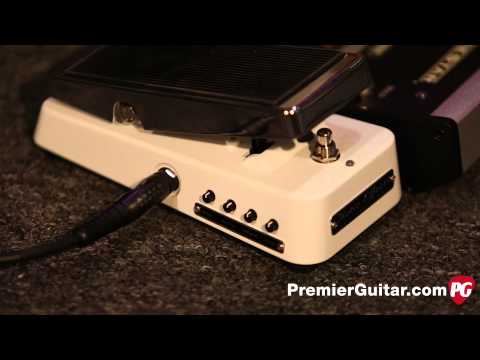

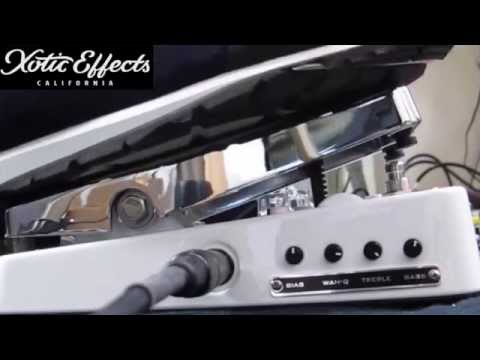

External Controls & Features:
Bias Control - Changing the bias warmer will lead the XW-1 to having slightly more output & firm up bass frequencies along with a more pronounced wah through the sweep. A cold bias is common with vintage wah pedals for a very clear voice that is more transparent in tone and smoother in operation.
Wah Q Control - This knob adjusts the Q (the width of the filter peak) and in basic terms, adjusts the amount of the wah effect for precise filter shaping to achieve vocal-like effects.
Treble & Bass Control - A two-band EQ with +/-15 dB center-detent potentiometers optimize the voicing for different playing styles and gear
Adjustable Rubber Stopper - Located on the backside bottom of the treadle this rubber bumper can be shimmed to adjust the travel range of the pedal.
Adjustable Pedal Torsion - Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle.
LED Indicator - The LED indicator is located at the top of the XW-1 and lights up when the pedal is on. One unique feature of the XW-1 is the LED will flash if the battery power falls below 50% and indicates that it is time to change the battery.
DC Jack - 2.1mm x 5.5mm 9VDC - Negative Center. When an external power supply is used, the battery is disconnected from the circuit. When using a battery, the life of the battery can be extended if you unplug the input when the effect is not in use for long periods of time. Battery access is through the removal of bottom plate (4 screws).
- Bias Control
- Wah Q Control
- Treble & Bass Control
- Adjustable Pedal Torsion
- LED Indicator
- DC Jack
- Input Gain
- Relay Bypass Switching
- Internal Dip Switches
- Power Consumption: 9VDC/5mA
- Battery Type: 9VDC (006P) x 1
- AC Adapter (Optional): Regulated 9VDC / Negative Tips
- Input Impedance: 1M ohm
- Output Impedance: 10K ohm
- Nominal Intput Level -20 dBV
- Nominal Output Level -20 dBV
- Bypass: True Bypass
- Dimensions: D 8.27" (210mm) W 3.94" (100mm) H 2.64 (67mm)
- Weight: 2.16lb. (980g)
8 AVAILABLE FROM
* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. Learn more here.
Found 0 artists
Trusted musician and artist reviews for Xotic Effects Wah XW-1
Based on 4 Reviews and 31 Ratings
Wah of the future
Wah wah wah... Bought it at Ochanomizu, Tokyo, Japan. It's smaller than the usual wah pedal... fit into my small pedal board case. However, since I'm using send & return for effect for MESA. Now having trouble locating it in my signal path chain. HELP. (trying to be minimalist)
The End to the Wah Dilemma
Truly took the Top of the list to the Wah that I have always wanted and Heard in my Head. Smooth, Honky, Versatile, Built with Professional Craftsmanship and True Old School Sounding. Real late-60's Tone here.
