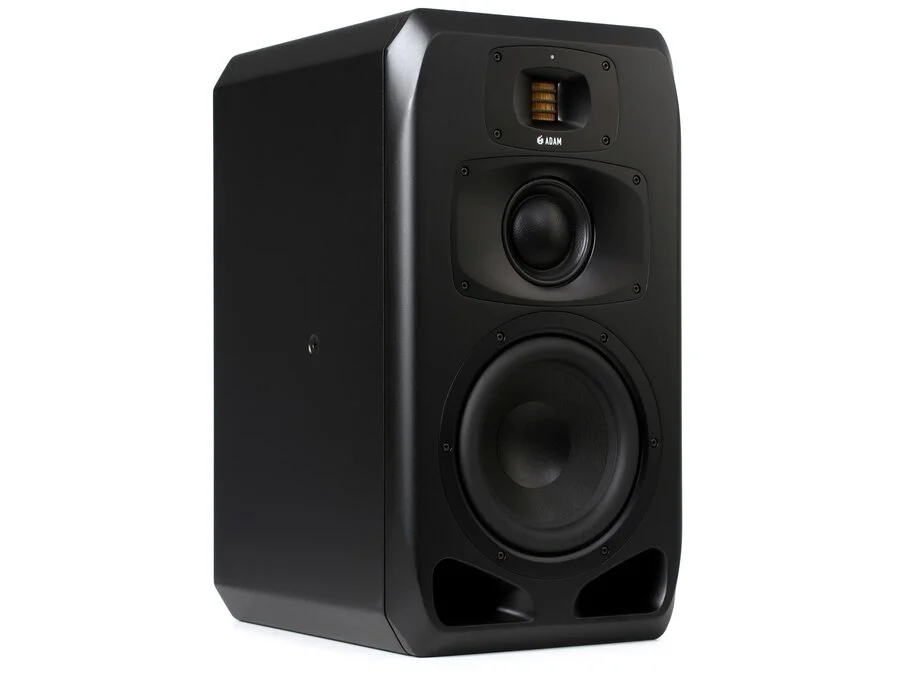

Introducing the ADAM Audio S3V, a powerful contender in the world of studio monitors. Purpose-built for midfield applications, this active vertical 3-way studio monitor boasts an impressive footprint that does not compromise on power or precision. Expect the rigorously enforced Berlin-engineered quality and the latest in ADAM's 3rd-generation S series tech.

The S3V's sound reproduction is nothing short of immaculate. It features the Extended Linear Excursion (ELE) woofer and the DCH midrange driver designs that are new additions to the S series. The icing on the cake is the S-ART tweeter - an even more precise version of ADAM’s renowned accelerated ribbon design.

Despite its compact size, the S3V packs a punch with its PWM ICE tri-amplification, which provides robust power and ultra-low distortion. It delivers high-resolution, full-bandwidth audio with a stunning clarity that brings out every nuance in your mix. Trust the ADAM Audio S3V to deliver world-class monitoring, session after session.

Key Features:

• Vertical 3-way system with 1 x 9" HexaCone woofer, 1 x 4” DCH midrange, and S-ART tweeter
• S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances
• Newly designed HPS and MPS waveguides, milled from a solid block of aluminum
• New midrange driver with one-piece hybrid dome/cone (DCH) design
• Custom-built Extended Linear Excursion (ELE) bass driver
• Custom-designed Symmetrical Magnet Assembly (SMA)
• Spacious bass reflex ports on the front baffle
• Highly efficient 850W PWM ICE Power tri-amplification
• Linear frequency response of 32Hz–50kHz
• Maximum peak sound pressure per pair at 1m ≥ 124dB
• Custom DSP engine
• Analog XLR inputs
• AES3 digital I/O
• 2-year warranty; optional extension to 3 years with product registration
• Sold individually

Owner's manual

Product specs

FAQs

What is the frequency response range of the ADAM Audio S3V?

The ADAM Audio S3V has a frequency response range of 32Hz to 50kHz, allowing it to reproduce a wide spectrum of audio frequencies with clarity.

Is the ADAM Audio S3V suitable for mixing and mastering in a professional studio?

Yes, the ADAM Audio S3V is designed as a three-way powered midfield studio monitor, making it suitable for precise mixing and mastering tasks in professional studio environments.

What type of drivers does the ADAM Audio S3V use?

The ADAM Audio S3V features a 9" hexacone woofer, a 4" carbon-composite midrange driver, and a 2.2" S-ART tweeter, providing a balanced and detailed sound reproduction.

How much power does the ADAM Audio S3V require?

The ADAM Audio S3V is tri-amped with a total power of 850 watts, distributed as 500W for the woofer, 300W for the midrange, and 50W for the tweeter.

What are the input and output options available on the ADAM Audio S3V?

The ADAM Audio S3V offers inputs via 1 x XLR and 1 x XLR (AES/EBU), and an output of 1 x XLR (AES/EBU), along with a USB Type B port for digital connectivity.
