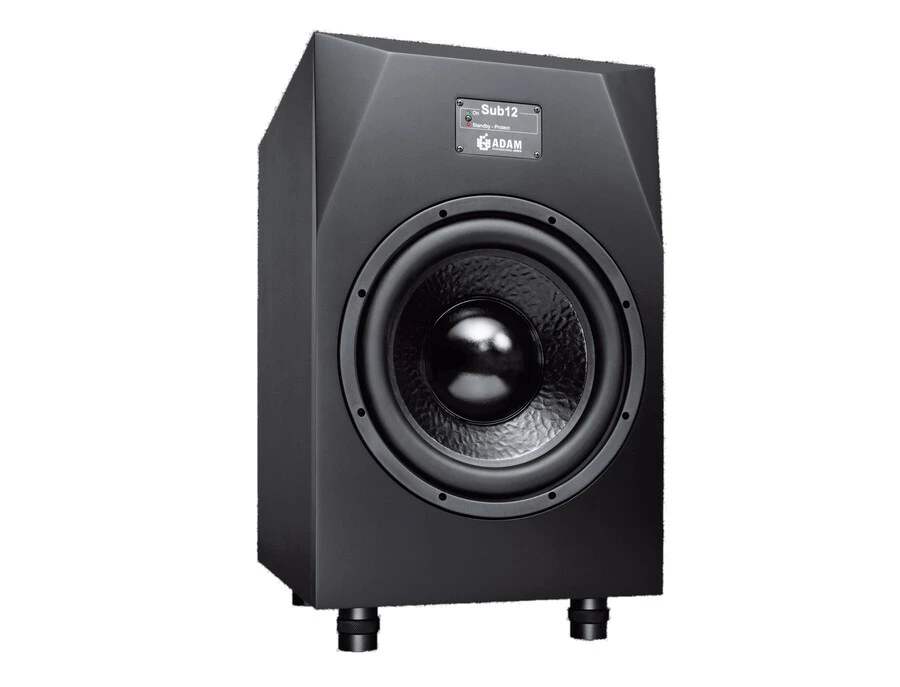

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).

• 12“ Subwoofer (paper)
• Amp. Power RMS / Music: 200 W / 300 W
• Frequency Response: 22 Hz - 150 Hz
• Max. peak SPL at 1 m: ≥115 db

Owner's manual

Product specs

FAQs

What is the frequency range of the ADAM Audio Sub12?

The ADAM Audio Sub12 has a frequency range of 22Hz to 150Hz, allowing it to deliver deep and powerful low-end sound suitable for enhancing the bass response in studio monitoring setups.

How powerful is the ADAM Audio Sub12 subwoofer?

The ADAM Audio Sub12 is powered with 200W RMS and can handle up to 300W of music power, providing ample output for professional studio environments.

What types of inputs and outputs does the ADAM Audio Sub12 have?

The ADAM Audio Sub12 features 2 x XLR and 1 x Dual RCA Stereo inputs, along with 2 x XLR, 1 x Dual RCA Stereo, and 1 x XLR (sub out) outputs, offering versatile connectivity options for various studio setups.

Is the ADAM Audio Sub12 suitable for small studio spaces?

With its compact dimensions of 23.5" height, 14" width, and 17.5" depth, the ADAM Audio Sub12 can fit well in small studio environments while delivering substantial bass performance.

Can the ADAM Audio Sub12 handle high sound pressure levels?

Yes, the ADAM Audio Sub12 can achieve a maximum peak SPL of ≥115dB SPL at 1 meter, making it capable of handling high sound pressure levels without distortion.
