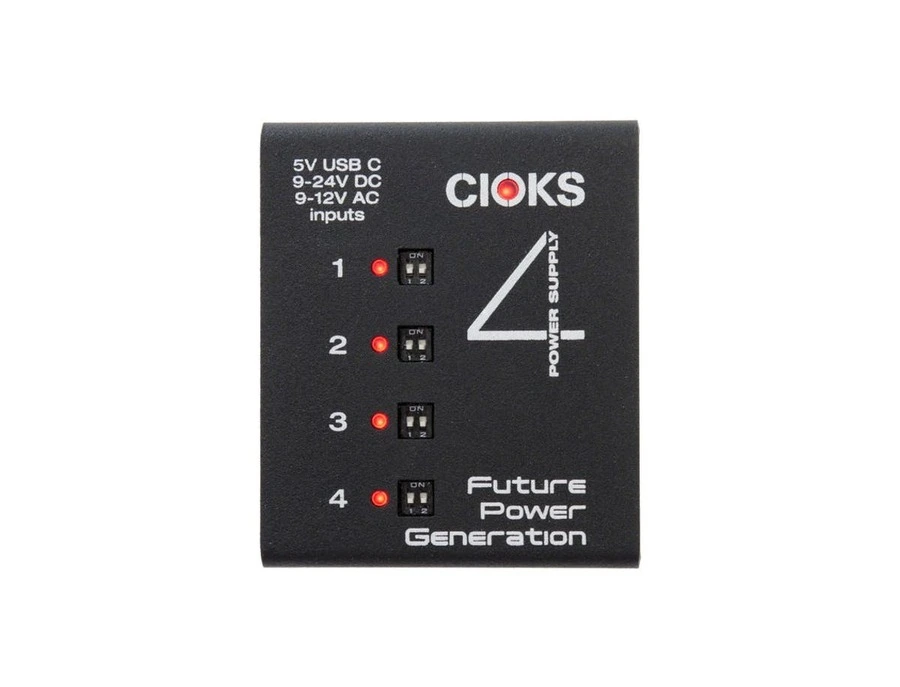

The Cioks 4 is the versatile powerhouse your pedalboard has been waiting for. This compact universal power supply is designed to meet the demands of modern musicians with a minimalist setup. Whether you're a gigging guitarist or a studio enthusiast, the Cioks 4 ensures that your effects pedals receive the precise voltage they require, thanks to its four isolated DC outputs, each capable of delivering a range from 9V to 18V.

What makes the Cioks 4 stand out is its incredible flexibility in power sourcing. You can connect it to a Cioks DC7 via the included 24V power link cable, or power it separately using almost any adapter between 9V and 24V DC or even a USB power bank through its 5V USB C input. This adaptability allows you to maintain a clutter-free pedalboard without sacrificing the functionality of your favorite effects.

In addition to its flexible power options, the Cioks 4 boasts advanced LED monitoring. Each outlet has its own LED status indicator, which dims or shuts off to signal voltage overload, helping you manage power consumption effortlessly. It also includes mounting hardware compatible with Pedaltrain and Temple boards, making it as easy to set up as it is to use.

With the Cioks 4, you're not just powering your pedals—you're enhancing your entire rig with reliable and noise-free operation, all in a sleek, compact package.

Key Features:

• Four isolated DC outlets with selectable voltages (9V, 12V, 15V, 18V)
• Compatible with Cioks DC7 as an expansion unit
• Can be powered via 9-24V DC, 9-12V AC, or 5V USB C
• Advanced LED monitoring for each outlet
• Ultra-compact design for space-saving on pedalboards
• Includes five Flex cables and mounting hardware for Pedaltrain and Temple boards

Product specs

FAQs

How do I connect the Cioks 4 to my existing pedalboard setup?

The Cioks 4 can be connected to your existing setup using the courtesy 24V outlet on a Cioks DC7 or any compatible power supply. It also accepts 9V to 24V DC or 9V to 12V AC via its non-polarized DC socket input, offering flexibility in integration.

What voltage options are available on the Cioks 4 outputs?

The Cioks 4 offers four isolated outputs that can be switched between 9V, 12V, 15V, and 18V, allowing you to power a wide range of pedals with different voltage requirements.

Is the Cioks 4 suitable for high-current digital pedals?

Yes, the Cioks 4 can supply up to 660mA per output depending on the voltage setting, making it suitable for powering high-current digital pedals efficiently.

Can the Cioks 4 be used as a standalone power supply?

While the Cioks 4 is primarily designed as an expander for the Cioks DC7, it can be used independently if connected to a compatible power source within its input voltage range.

Does the Cioks 4 include a USB port for additional power needs?

Yes, the Cioks 4 includes a USB-C port, providing additional power options for devices that require USB connectivity.
