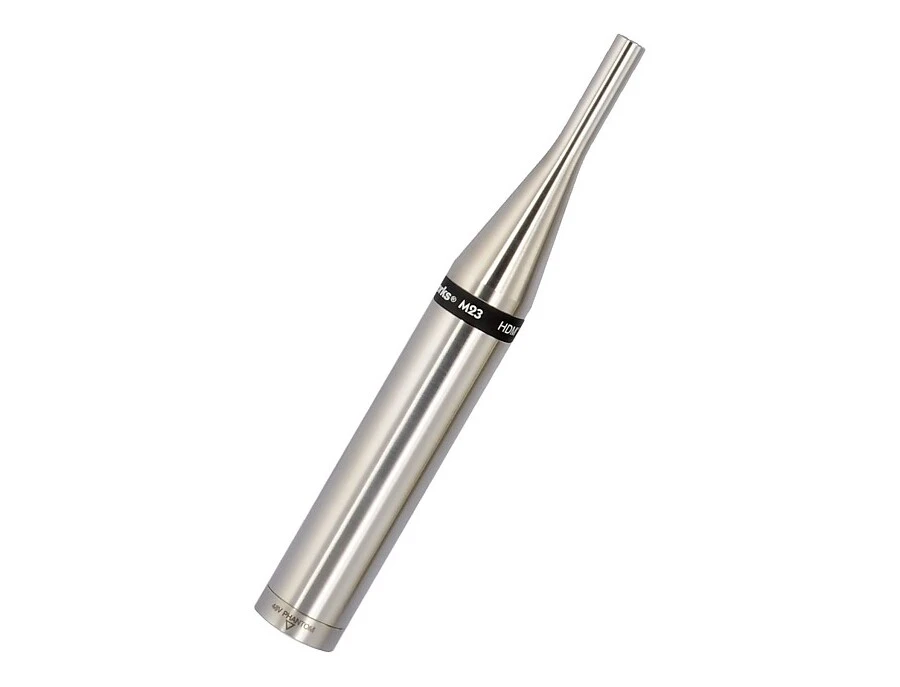

Elevate your acoustic measurement game with the Earthworks M23MP Omnidirectional Measurement Microphone Matched Pair. Engineered for precision and reliability, these small-diaphragm condenser microphones offer a ruler-flat frequency response up to 23kHz, making them indispensable tools for room acoustics analysis, sound system calibration, and loudspeaker design. Known for their stability under varying temperature and atmospheric conditions, the M23MP excels in delivering fast impulse responses with minimal handling noise. Whether you're a seasoned audio engineer or an acoustic consultant, this matched pair is your go-to solution for accurate free-field measurements, setting a new standard in measurement microphone technology.

Crafted to meet the demands of ANSI Type 1 and IEC 61094 standards, the M23MP offers an exceptional polar pattern and comes with an individual mic calibration chart. Upon registration, users can access an Electronic Calibration File (ECF) for even further precision. The Earthworks M23MP is more than just a microphone; it’s a trusted partner in acoustical excellence.

Key Features:

• Omnidirectional small-diaphragm condenser design
• Flat frequency response up to 23kHz
• Fast impulse response with excellent polar characteristics
• Meets ANSI Type 1 and applicable IEC 61094 requirements
• Includes individual mic calibration chart
• Electronic Calibration File (ECF) available upon registration

Product specs

FAQs

What is the primary use of the Earthworks M23MP Omnidirectional Measurement Microphone Matched Pair?

The Earthworks M23MP is primarily used for acoustic measurement applications, providing precise audio analysis due to its 23kHz flat frequency response and omnidirectional polar pattern.

Does the Earthworks M23MP require phantom power?

Yes, the Earthworks M23MP requires 48V phantom power to operate.

What is the frequency response of the Earthworks M23MP microphones?

The Earthworks M23MP microphones feature a flat frequency response up to 23kHz, ensuring accurate sound measurement and analysis.

Are the Earthworks M23MP microphones suitable for studio recording?

While primarily designed for measurement, the Earthworks M23MP can also be used in studio environments where precise audio capture is needed, thanks to its fast impulse response and exceptional polar characteristics.

Do the Earthworks M23MP microphones come with calibration charts?

Yes, each M23MP microphone is delivered with its own calibration chart to ensure accurate and reliable measurements.
