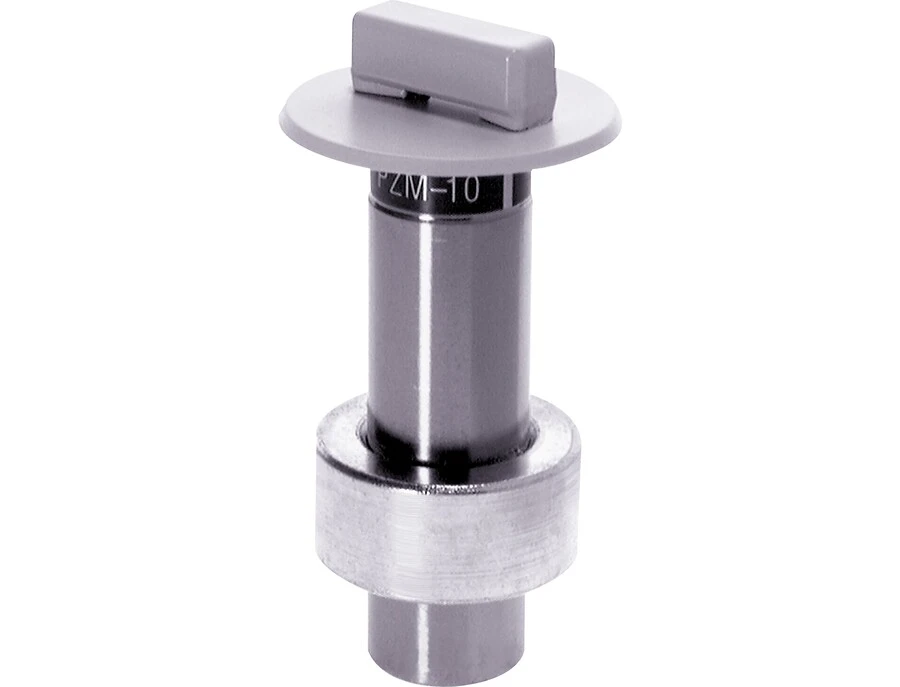

The AKG PZM10 Boundary Microphone is a sleek and versatile tool designed for situations where discretion and clarity are paramount. This hemispherical flush-mount boundary microphone excels in environments such as conference rooms, security setups, and surveillance operations due to its unobtrusive design and advanced audio capturing capabilities. The miniature electret condenser capsule, positioned close to a reflective boundary plate, ensures a coherent blend of direct and reflected sounds. This design not only boosts sensitivity by 6 dB but also reduces noise by the same margin, offering a wide frequency response free from phase interference.

A tubular steel housing allows for easy installation in ceilings, walls, or tables, requiring only a 25/32" diameter hole. The mic-level output is facilitated via an XLR 3-pin connector, and the microphone operates on 12 to 48 VDC phantom power, making it a reliable choice for both permanent installations and temporary setups. The PZM10's frequency response ranges from 80 Hz to 20 kHz, optimized to capture articulate vocals while minimizing low-frequency ambient noise, such as air conditioning hums. This boundary microphone is not just a microphone; it's a strategic asset for clear and discreet audio capture.

Key Features:

• Hemispherical flush-mount boundary microphone for discrete applications
• Electret condenser capsule with a wide frequency response (80 Hz to 20 kHz)
• Balanced mic-level output with XLR 3-pin male connector
• Operates on 12 to 48 VDC phantom power
• Tubular steel housing for easy mounting in a 25/32" diameter hole
• Optimized for reduced low-frequency noise and enhanced vocal clarity

Product specs

FAQs

What is the polar pattern of the AKG PZM10 Boundary Microphone?

The AKG PZM10 features a hemispherical polar pattern, which is ideal for capturing clear and intelligible speech in various environments.

Can the AKG PZM10 Boundary Microphone be used for podium or conference setups?

Yes, the AKG PZM10 is well-suited for podiums, ticket windows, conferencing, and surveillance due to its low-profile design and clear speech pickup capabilities.

What type of power supply does the AKG PZM10 Boundary Microphone require?

The AKG PZM10 requires 12-48 V phantom power to operate, making it compatible with most standard audio interfaces and mixing consoles that provide phantom power.

How does the AKG PZM10 Boundary Microphone connect to audio equipment?

The AKG PZM10 connects via an XLR connector, which is standard for professional audio equipment and ensures a secure and reliable connection.

What is the frequency response range of the AKG PZM10 Boundary Microphone?

The AKG PZM10 offers a frequency response range of 80Hz to 20kHz, providing a broad spectrum suitable for capturing speech with clarity.
