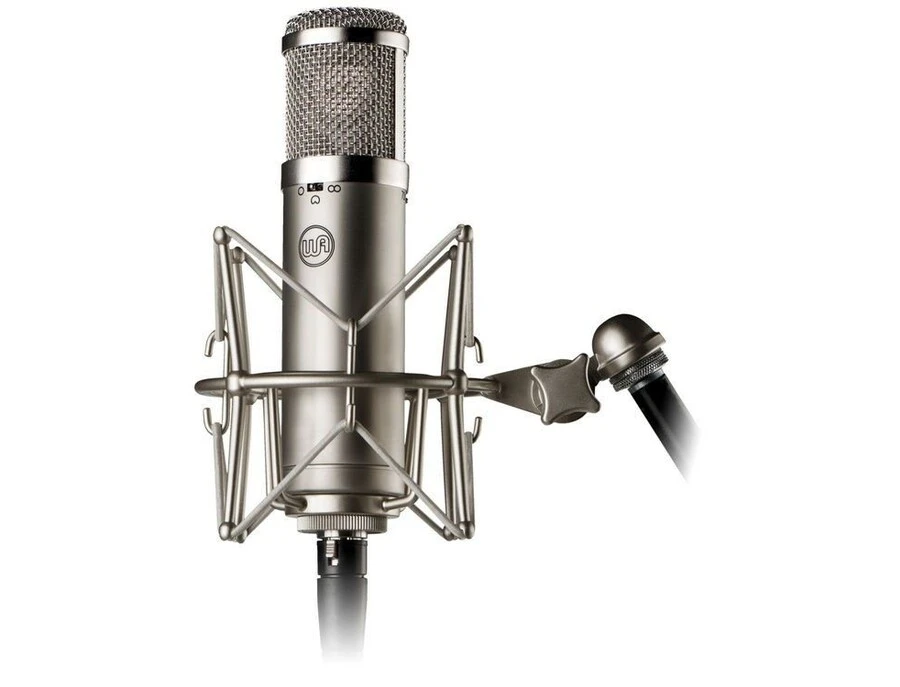

Introducing the Warm Audio WA-47jr, a multi-pattern FET condenser microphone that seamlessly blends vintage tone and modern technology to provide a premium recording experience at an affordable price. Designed as a tribute to the renowned '47-style tube mic, this microphone recreates its revered sound, delivering warmth, depth, and character to your recordings.

At the heart of the WA-47jr is its k47 capsule, a custom-made replica of the original capsule found in the vintage '47 mics. This meticulous reproduction captures instruments and vocals with an analog smoothness and depth that is reminiscent of higher-priced vintage tube mics. From lead vocals and acoustic guitars to drum overheads, the k47 helps the WA-47jr achieve a rich, full tone with inviting warmth and character.

Complementing the vintage tone of the k47 capsule is the WA-47jr's modern, solid-state FET circuitry. Built with high-quality Toshiba transistors and WIMA film capacitors, this FET design is optimized for low noise and high detail. It brings an open, airy top end that adds clarity and definition, combining the depth and body of a classic mic with the crisp detail of a contemporary condenser.

For maximum flexibility in your studio applications, the WA-47jr offers three selectable polar patterns: cardioid, omnidirectional, and figure-8. This solid-state microphone is set within a durable nickel-plated brass body and mesh grille, promising years of reliable use.

Key Features:

• Custom '47-style k47 capsule for vintage tone
• High-quality Toshiba transistors and WIMA film capacitors
• Versatile use with three selectable polar patterns: cardioid, omnidirectional, and figure-8
• Discrete, transformer-less signal path for low noise and high detail
• Durable, nickel-plated brass body and mesh grille for longevity
• Includes a shockmount, hard mount, and zippered carrying case for protection and easy transport
• Requires 48-volt phantom power
• Frequency range: 20Hz–20kHz
• Max SPL: 147/157dB (at 1kHz, 1 Kohm, 0.5% THD, 0/-10dB)
• Output impedance: 100 ohms
• Rated load impedance: ≥1 Kohm
• 3-pin gold-plated XLR connector for superior connectivity.

Owner's manual

Product specs

FAQs

Does the Warm Audio WA-47jr require phantom power?

Yes, the Warm Audio WA-47jr requires 48V phantom power to operate, as it is a condenser microphone.

What polar patterns does the Warm Audio WA-47jr offer?

The WA-47jr offers three polar patterns: cardioid, figure-8, and omnidirectional, providing flexibility for various recording scenarios.

Is the Warm Audio WA-47jr suitable for recording vocals?

Yes, the WA-47jr is well-suited for recording vocals, offering a warm, detailed sound that captures nuances effectively.

What is the maximum SPL of the Warm Audio WA-47jr?

The WA-47jr can handle a maximum SPL of 147dB, or 157dB with the -10dB pad engaged, making it capable of recording loud sound sources without distortion.

What accessories are included with the Warm Audio WA-47jr?

The WA-47jr comes with a shockmount, which helps to reduce handling noise and vibrations during recording.
