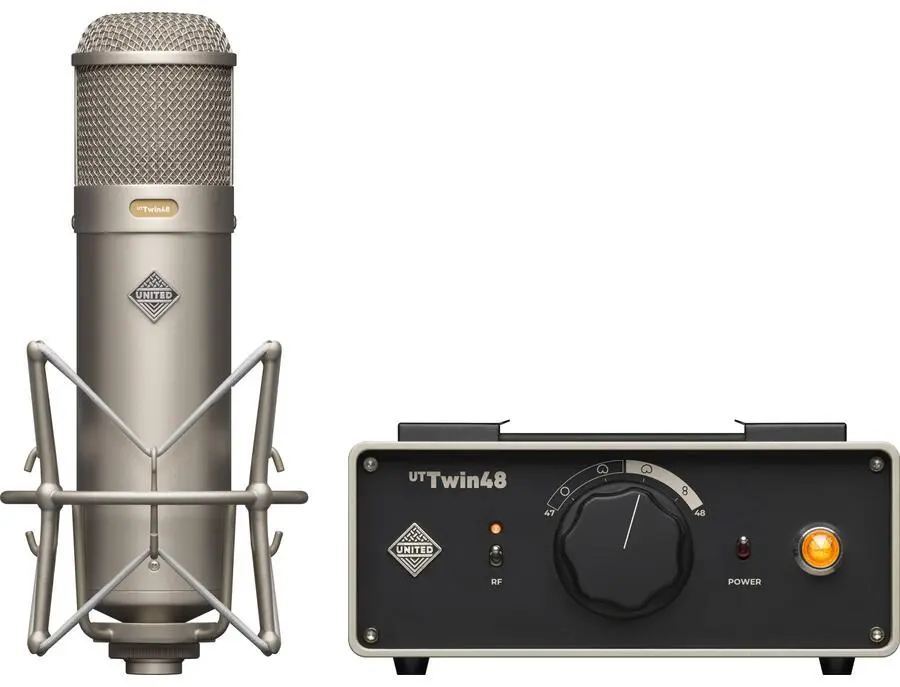

Combining the legendary qualities of the U47 and U48 microphones, the United Studio Technologies Twin 48 Large-diaphragm Tube Condenser Microphone offers a unique blend of vintage sound and modern versatility. This microphone isn't just about nostalgia; it's about delivering true versatility with a dual-mode operation that allows you to switch seamlessly between the 47 and 48 circuit modes. Each mode provides distinct tonal characteristics, making it ideal for capturing a variety of audio sources with precision.

Crafted with premium components, the Twin 48 ensures an authentic vintage sound signature. At its core is a NOS EF86 pentode vacuum tube, renowned for its rich harmonic profile. The custom-designed K48-style capsule, with its 24kt gold-sputtered 6-micron PET film diaphragm, ensures each recording is smooth and free from unwanted resonances. This is further enhanced by a custom-wound US-made high-nickel transformer, designed to minimize interference while maximizing clarity.

The microphone's durable milled brass body, coupled with a high-performance power supply, ensures that your recordings are free from noise and distortion. Whether you're capturing the subtle nuances of vocals or the powerful dynamics of instruments, the Twin 48 is engineered to meet the demands of any studio environment.

Key Features:

• Large-diaphragm tube condenser microphone
• Selectable circuit modes based on U47 and U48
• NOS EF86 pentode vacuum tube for rich sound
• 6-micron, 24kt gold-sputtered Mylar diaphragm
• Custom-wound high-nickel transformer
• Dual polar patterns: 47 cardioid, 48 cardioid, 47 omni, 48 figure-8
• Includes external power supply, shockmount, and vintage-style briefcase
• Frequency response: 20Hz–20kHz
• Max SPL: 137dB @ 0.5% THD
• Output impedance: 35 ohms
• Self noise: 11dBA

Product specs

FAQs

What polar patterns does the United Studio Technologies Twin 48 offer?

The United Studio Technologies Twin 48 offers three polar patterns: cardioid, omnidirectional, and figure-8, allowing versatile recording options for various studio applications.

Is the United Studio Technologies Twin 48 suitable for vocal recording?

Yes, the Twin 48 is well-suited for vocal recording due to its large-diaphragm condenser design, which captures detailed and warm sound, ideal for vocals.

What power source does the United Studio Technologies Twin 48 require?

The United Studio Technologies Twin 48 requires 48V phantom power, which is standard for most condenser microphones and easily supplied by most audio interfaces or mixers.

How does the United Studio Technologies Twin 48 handle high sound pressure levels?

The Twin 48 can handle a maximum SPL of 137dB, making it capable of recording loud sources without distortion, such as drums or amplified instruments.

What is the self-noise level of the United Studio Technologies Twin 48?

The self-noise level of the Twin 48 is 11dB A weighted, which is relatively low, ensuring clean recordings with minimal background noise.
