Moog erfooger MF-102 Ring Modulator
Gives you unlimited new sounds.
The Moog MF-102 Ring Modulator is a direct descendant of the original Moog modular synthesizers. It contains three complete modular functions: a ring modulator, a voltage-controlled carrier oscillator, and voltag... read more
Found 0 artists
I have started to use it on bus's however to give a nice LFO modulation to things like reverbs and such when Im trying to be creative.
I don't use this as much as I wish TBH. I use it mostly in extended fx chains where I am already using on of my other mooger foogers. I hardly ever use this thing by itself. I have started to use it on bus's however to give a nice LFO modulation to things like reverbs and such when Im trying to be creative.
MF-102 Ring Modulator
The MF-102 Ring Modulator is an award winning effect designed by Bob Moog. It contains an analog Ring Modulator with a built in Carrier Oscillator and LFO. Used with guitars, basses, keyboards, samples, or recorded tracks, the MF-102 can create subtle, or completely over-the-top effects. Uncontaminated by the digital world!

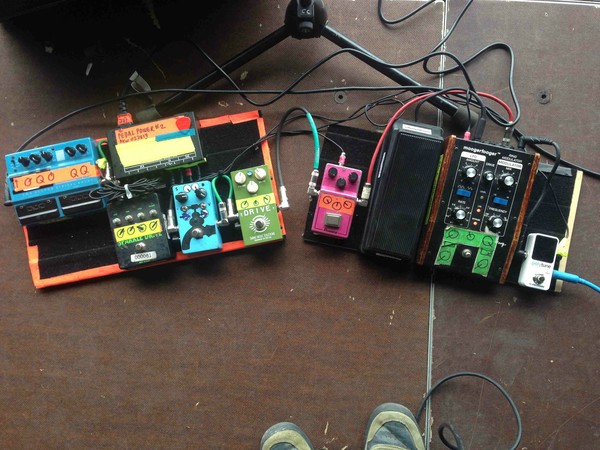

Community Gear Photo

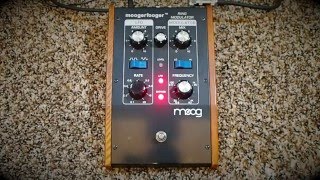

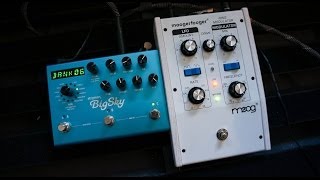

6 Videos Uploaded
Gives you unlimited new sounds.
The Moog MF-102 Ring Modulator is a direct descendant of the original Moog modular synthesizers. It contains three complete modular functions: a ring modulator, a voltage-controlled carrier oscillator, and voltage-controlled dual-waveform LFO. It can be used to process any instrument-level to line-level signal.
A ring modulator produces sum and difference frequencies between the audio input and a carrier oscillator. The ring modulator's LFO can be used to modulate the carrier frequency. The Moogerfooger Ring Modulator can create effects ranging from subtle tremolo to harmonically rich distortion, gong-like sounds, sweeps, swoops, and divebombs. It can be subtle, or outlandish in its use - you decide!

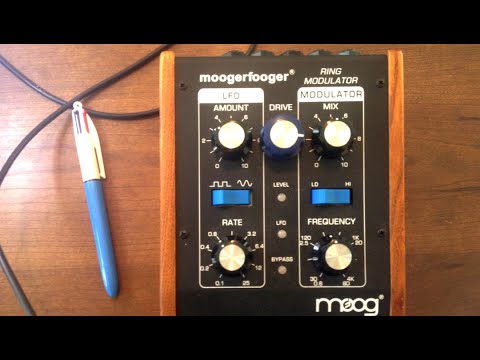

The Moogerfooger Ring Modulator's control parameters are signal mix, carrier frequency, LFO rate, and LFO amount. All of the ring modulator's parameters can be controlled by the great feeling knobs that beg to be tweaked as well as with expression pedals or external control voltages. Panel switches select LFO waveform and carrier frequency range. 1/4" jacks are provided for audio input and output, pedal/control inputs, carrier input and carrier output. The heavy-duty yet smooth acting bypass switch allows tabletop or floor use.
Imagine that the ring modulator's carrier oscillator is producing a 500 Hz sine wave, and your input signal is a 100 Hz sine wave. The ring modulator's output will be a complex waveform. You will hear two pitches: 400 Hz and 600 Hz. You will not hear your original input or the carrier oscillator.
Power supply is included for use with 110 VAC.
- Frequency rotary control, which varies the carrier frequency over a six-octave range.
- Rate rotary control, which varies the LFO's frequency from 0.1 Hz to 25 Hz.
- LFO Amount rotary control, which adjusts the amount that the LFO output sweeps the carrier oscillator.
- Mix rotary control, which crossfades continuously from unmodulated to modulated audio.
- Drive rotary control, which adjusts the gain of the audio input.
- Square-Sine rocker switch, which chooses the LFO waveform.
- Lo-Hi rocker switch, which chooses between the low frequency carrier range (2 Hz to 130 Hz) and the high frequency carrier range (60 Hz to 4,000 Hz).
- Level, a three-color LED that is used to set the DRIVE control.
- LFO, a LED that indicates the LFO rate.
- Bypoass, a two-color LED that tells whether the ring modulator is on or bypassed.
- On/Bypass, a rugged, smooth-acting stomp switch
