Pricing and availability
We compare 600+ stores and found this item at 7 stores. Prices updated .
Store
Reviews
Price
Average Price: $479
High-end/Boutique
$100
$251+
Price Tier
Budget
Standard
High-end
Price History
Based on price data from 6 merchants for "Empress Echosystem". Prices shown reflect NEW condition. Tracking began Apr 2, 2026.
* Product prices and availability are updated by Equipboard every 24hrs and are subject to change. Equipboard may receive compensation for purchases made at participating retailers linked on this site. This compensation does not affect what products or prices are displayed, or the order of prices listed. For more information, please refer to our affiliate disclosure.
Description
Meet the Empress Echosystem Dual Engine Delay, a powerhouse of versatility that is set to revolutionize your sound. Following the legacy of the company's renowned Reverb, this compact beast offers a myriad of delay effects, catering to every musician's unique style. The dual engine system is the star of the show, allowing you to blend any two of the 36+ effect variations. From the warm presence of tape and lush ambience to the distinct character of digital, the Echosystem has got it all. Personalize your sound with the intuitive controls that give you the power to tweak parameters specific to each effect.
Key Features:
- Controls: Delay Time, Mix, Output, Feedback, Tone, Thing 1 & 2 (controls parameters unique to each effect)
- Modes: Digital, Tape, Analog, Multi, Mod, Filter, Ambient, Delay + Reverb, Reverse, Stutter, Lo-Fi, Whisky
- Connections: Universal Control Port uses a 1/4" jack for expression, external tap, voltage, audio in, and MIDI
- Other Features: 35 preset slots, three cab simulations, output transformer, global and local tap tempo
Owner's manual
Empress Echosystem User ManualProduct specs
| Pedal Type | Dual Delay, Echo |
| Analog/Digital | Digital |
| Presets | 35 x user presets |
| Effects | 12 x delay algorithm types |
| Looping Time | 10 minutes |
| Tap Tempo | Yes |
| Inputs | 2 x 1/4" (L/mono, R) |
| Outputs | 2 x 1/4" (L/mono, R) |
| MIDI I/O | MIDI in via Control Port with Empress Midibox (sold separately) |
| Other I/O | 1 x 1/4" (control/MIDI/expression/CV/tap tempo), 1 x SD card slot (firmware update/looper storage) |
| True Bypass | Yes, Switchable to Buffered |
| Features | 3 x Cab Sim variations |
| Power Source | 9V DC 300mA power supply (sold separately) |
| Height | 2.25" |
| Width | 5.7" |
| Depth | 3.75" |
| Weight | 1.5 lbs. |
FAQs
-
What types of delay algorithms are available on the Empress Echosystem?
-
The Empress Echosystem offers 12 different delay algorithm types, providing a wide range of echo effects suitable for various musical styles.
-
Can the Empress Echosystem be used with both mono and stereo setups?
-
Yes, the Empress Echosystem supports both mono and stereo setups with its dual 1/4" inputs and outputs, allowing flexible integration into any pedalboard configuration.
-
Does the Empress Echosystem include a tap tempo feature?
-
Yes, the Empress Echosystem includes a tap tempo feature, enabling you to easily sync your delay times with the tempo of your music.
-
Is the Empress Echosystem compatible with MIDI controllers?
-
The Empress Echosystem can be controlled via MIDI using the Empress Midibox (sold separately), allowing for expanded control and integration with MIDI setups.
-
How many user presets can be stored on the Empress Echosystem?
-
The Empress Echosystem allows you to store up to 35 user presets, making it easy to recall your favorite settings during performances or recording sessions.
-
Does the Empress Echosystem have a true bypass feature?
-
Yes, the Empress Echosystem features true bypass switching, which can also be set to buffered bypass depending on your preference for maintaining signal integrity.

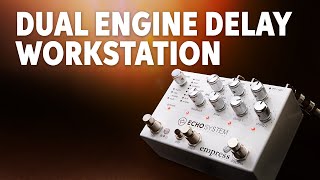

Videos
Knobs
Empress - EchoSystem
Reviews
PROS
-
Replaces multiple delay pedals with extensive features
-
Dual delay allows for unique sound customization
-
Offers 35 onboard presets, adjustable to user preference
-
Multiple parameter changes assignable to an expression pedal
-
More convincing lo-fi sounds compared to competitors
-
Built-in looper with capacity for complex setups
-
Intuitive interface with color-coded LEDs for easy navigation
-
High-quality sound engines produce lush, warm tones
-
Compatible with stereo setups for expansive soundscapes
-
Excellent customer support from Empress
CONS
-
Firmware updates via SD card can be complex for some
-
Learning curve due to complex functionalities
-
Lack of screen may complicate parameter identification
-
Cannot use MIDI and expression pedal simultaneously
-
True bypass configuration not default, requires manual setup
Owner Insights
We analyzed real musician discussions from forums and Reddit to find what players love, question, and tweak about Empress Echosystem.
Features and functionality
-
When the Reverb firmware is installed on the Echosystem, it operates as a single reverb, not utilizing the dual engine capability.
Source -
The looper mode can record up to 10 minutes and allows for MIDI sync, ensuring perfectly timed loops.
Source -
Whisky mode creates ambient arpeggiations by setting lower and higher intervals, which can be combined with ambient mode for rich soundscapes.
Source -
The Empress Echosystem includes a surprise cab sim with three built-in cabs: dark, bright, and modern, useful for ampless setups.
Source -
Dual serial mode allows chaining of two separate delays, emulating setups like a Guitar > Carbon Copy > DD-3 chain.
Source -
The looper allows for unlimited time on the first loop (up to 10 minutes) and has four additional slots for layering, which can be muted, overdubbed, or deleted.
Source
Comparisons
-
Users find the tape delay settings—new tape, old tape, echorec, and space echo—capture classic vibes effectively.
Source
Use cases and applications
-
The pedal's dual engine mode allows combining effects like lofi and stutter for unique sound experiences.
Source -
Users find it effective to maintain two SD cards for quick swapping between delay and reverb functions, allowing seamless transitions between the two effects.
Source -
The Echosystem is favored by musicians like Omar Rodriguez-Lopez for creating ambient soundscapes and unique delay effects in live performances.
Source
User experience
-
Owners report the EchoSystem accommodates dirt pedals in front exceptionally well, enhancing the overall sound texture.
Source -
The process of switching firmware is straightforward: unplug the pedal, swap the SD card, then plug it back in to flash the new firmware.
Source -
Some owners find the dual engine's button for switching between single, series, and parallel modes particularly easy to use, which is beneficial for live performance adaptability.
Source -
The pedal is praised for its intuitive interface, with minimal menu diving needed, although users still keep the manual handy for color-coded delay types.
Source
Software and compatibility
-
While the Echosystem works fine with MIDI, using the Reverb firmware may not fully support MIDI control, according to user experiences.
Source -
Swapping firmware between Echosystem and Reverb requires renaming the file to match the pedal's naming convention for successful installation.
Source -
Users can download Empress Reverb firmware onto the Echosystem, effectively turning it into a reverb pedal via SD card.
Source
Critic Reviews
5.0 out of 5
Based on 1 Review and 23 Ratings
822
Go with two amps with the Echosystem and you will never want to stop playing the guitar.
This is my first dedicated Delay pedal. Before I tried a TC Electronics Flashback 1.0, also the delays from Amplitube and Bias FX.
After I unpacked the Echosystem, I updated the firmware to the latest version (1.07), then I tried every effect with a Vox AC15 in the normal channel, which sounded good. After I ended the quick-tour, I remembered that this pedal can go on stereo by using two amps, so I used the AC15 also a Marshall MG15 which I have for quiet practice. Once I've paired the volume on both amps and I begin to use the Echosystem, the sound was incredible amazing.
There is a certain position for the amps to create the stereophonic sound, you just have to sit down and play in front the amps, these separated by almost 1.2 meters (4 feet), and you're done, you will be ready to the most amazing sounds.
Certainly, most people complains about there is not a screen telling you which effect, parameter or preset is on, and probably the most desirable thing to know is what "thing 1" and "thing 2" mean without a manual, or the exact current delay time on the pedal. However, once you play like two hours with the Echosystem, you get really used to this. Actually, I'm that kind of guitar player who is tweaking the pedals all the time during a solo practice, so I like how easy you can get the sounds.
I was playing the Echosystem directly in front the amp, so I can't tell much about using the pedal through an Amp FX Loops, but I tried a kind-of wet/dry stereo and it sounded awesome, as much as I started playing at 17:00 hrs and after a while I noticed it was 22:30 hrs.
The dual engine posibilities are very handy and I liked the parallel engine, even when before getting this pedal I was caught by the series engine. Still I need to dig a little more into the dual engines to perfectly mix both delays.
I hope in a future Empress Efects release a software so you can create your unique Modes or a Computer based patch manager, that would be very useful. Also, to have an use with the SD card port with more Modes, like a Looper, or more presets.
Update Feb.19.2023
This pedal fits superb for small pedalboards also, where you need to choice just a few pedals. Saying this, the Echosystem can bring you modulated effects also Reverb, that you can get from the delays putting the time to 0 ms, mix 100%.
Also, if you do stereo or wey/dry, you can easily route your signals per side. Just save a preset or presets with the desired setups on left/right machines.
Update Dec/04/2023
I had a problem with the Echosystem due to overload on my pedalboard, and some of the circuit got burnt, so I got in contact with the Empress customer service asking for a repair. Instead they gave me some directions that I was able to do like one year later, this is, now with a proper solder station (I never could be able to do just with a solder pencil). So, I'm glad with them because their reply was very friendly, specific and solved the problem. I would prefered to send the pedal but they said there was no need for that. After all, the Echosystem is back thanks to the Empress Technical Support. I owe them some XX Lagers and Coronas, of course.
By the way, during this time, I had to use a TC Electronics Flashback as the main and unique delay on my setup. Now, I can tell you exactly the difference between both pedals. Taking apart the dual engines and modes that the Echosystem has, this one is a keeper because the quality sound is massive and the texture of the main signal is kept clear and safe, so you can notice every change on the sound, soft and heavy sounds and so.
Preferred Settings + Usage:
Left side engine with an Octaved shift delay with long time feedback 0% mix 100%, Right side engine with a basic signal, wet 0% dly 0% fbk 0%
822
I had the chance of revisiting again a TC Electronics Flashback from a friend, and we put the Echosystem and the Flashback, the quality tone in the Echosystem feels more analogue than the Flashback, however and despite the direct options to tweak the Flashback, it had a consistent and great sound, but that was a picky test, so probably in a massive gig the crowd will not even notice which pedal are you running BUT it must be in a stereo setup to achieve a big improvement in your sound.
822
About the past comment, my conclusion is that the Echosystem has a lot of features very well appreciated for studio purposes, where the quality can be noticiable, but in a live situation and if for your playing your don't require a lot of features, the TC Electronics Flashback brings a good quality on delays modes and more by making some tone prints.
822
By the way, every delay pedal with modulated sounds can bring "free" modulations effects in dry mode, and the Echosystem is not a exception.
So you can select the Digital mode - Pristine (blue color), then turn the delay and the feedback to zero, apply the desired mix and turn the "things" knobs at your taste. The tone knob can also bring some bright on the tone.
Using the engine in "Series" you can put your first engine as a modulation and have the second engine making the delay effects.
822
[deleted]
822
[deleted]
822
[deleted]
822
[deleted]
822
Yesterday, I gave another try to find the Echosystem magic, and I think I already find it.
All the awesomeness in this pedal is based on how much volume up has the Input knob. Maybe, changing the Pad input to 0 dB will help a lot :) Turn back to 5 stars again!
822
Did another season with this fancy pedal, now I went into advanced mode and put the attenuator pad level at 0 db to get a raw gain and volume signal... Now, sounds much better than before! My only complain now is about the analogue modes with low volume even when the mix is all wet. I'll check if this can be fixed with the manual.
822
All right, I'll do a quick summary: After you get an Empress Echosystem, go and update the pedal. After, go into advanced configuration. In the manual check how to put off the level pad input to 0 dB, with these mods you will have a better sound from the whole chain.
822
Recent addition: I have been doing some practice with a beginner band and now I have the time to check how the pedals sounds blend with everything. So the true nature about this pedal appears when a full band is playing, it has a good sound and I like that the volume can be adjusted, in this way, if a wet sound is not clear at all, just adjust the volume up. Very good pedal, I use it in MXR Carbon Copy > Empress Echosystem, both turned on, both with delay on.
822
Right now I'm using the Echosystem in a multipurpose pedal with two amps, so far to really get the juice from this pedal you have to go this way. So these are the multioptions that you can use this pedal at the same time or specific at some moments:
1) The first thing to come to my mind is the delay using (what it is intended for), so ... Go in a Egde mode and put two different types of delay for every side... or manage to get the same style of delay but with different times. The magic comes when you press the infinite delay stomp, so the feedback goes infinite just in one amp. Stomp the machine mode button to change which side (left or right) is having the feedback.
2) Use the serial mode to put a modulated effect in the first machine and a delay or reverb in the second: So, for the first machine, go with 0% delay time and feedback and full wet effect, with volume at your taste. Then, change to the second series machine to config your desired delay time. Enjoy!
3) If you don't like or have modulations (like me), you can use stereo and dry/wet presets so you can use your Echosystem like a mixer. How to do this? Use a color bank to remember that those presets will be dry/wet or stereo, or even an amp cancel (with 0% volume). You just have to put the Left/Right Mode, use the 100% wet (or the quantity you desire) for the wet amp and 0% wet for the dry amp. Actually, you can select the wet/dry or stereo mode from the pedal configuration but, during a Gig this tip is better to change between routings.
4) I haven't tried but, using a pedal expression to modify the thing 1 or 2 probably will unlock a wider tonal experience. The common way is to modify the amount of the delay time or feedback but modifying the modulations in the delay machines will bring a different experience.
5) The parallel mode is the easiest way to get ambient tones, but also to get a clear sound or sustained background. Put a Spring Reverb with low volume and bring a good amount decay. You will have a background sound to support you.
822
By the way, I think I'm nailing the Timeline sounds, so you can get the Timeline sounds into the Echosystem, but with an improved quality.
822
As far I'm getting on the Empress Echosystem, I'm making interedting presets for music. Say, put a Tape delay on the left-side while you put a Whiskey-red Octaves machine on the right-side with some delay, then put a little down the volume on that right-side. The right amp will act like a shadow for the left amp, but with an octave up, very Radiohead-ish.
822
On serial mode, put a Digital Standard delay (Digital-Blue), chain with a Digital Ping Pong (Digital-Red). Use different time delays, so it musically sounds like a triplet or something like that.
822
Thoughts on the Looper Mode: It works really nice, it's very well appreciated so I will not buy a dedicated looper just for the pedalboard. Fits well on what I need, probably I have to work with it a little more, but my first experience with this mode was complacing. I'm glad to have bought the V30 Card 32 Gb is so fair.
822
My recent discovered trick, is to put the machines on Series Mode, first put Whiskey-Red with 100% wet, feedback 0%, thing 1 at 12 o'clock and some delay. The next machine put Delay+Reverb (Blue or Green, as you like), mix at 50%. Delay, Feedback, Thing 1 & 2 as you like. This will bring you a Sag-like tone, so you can play with a little smoothness, but also to have a bassy rounded sound.
822
After practicing a little bit with the built-in looper, I can say that is an useful feature. I just can't have a good timing sometimes, my foot is dummy and I don't hit properly to move between the tracks and the Echosystem pause the track or begins to dub the current track. So, I think is more about practicing or maybe I will stick with a rhythm box and control the Echosystem thru midi, also to have an accurate start and end.
Artist usage
Add artist
in this video posted to kev's instagram, an empress echosystem can clearly be seen on a table towards the end
In the recent episode of That Pedal Show, Noel Gallagher's pedalboard for the "Who Built the Moon?" tour features the Empress Echosystem, visible at the bottom left.
In the EarthQuaker Devices video, "Board to Death Ep. 12," Taylor York of Paramore discusses using the Empress Echosystem pedal.

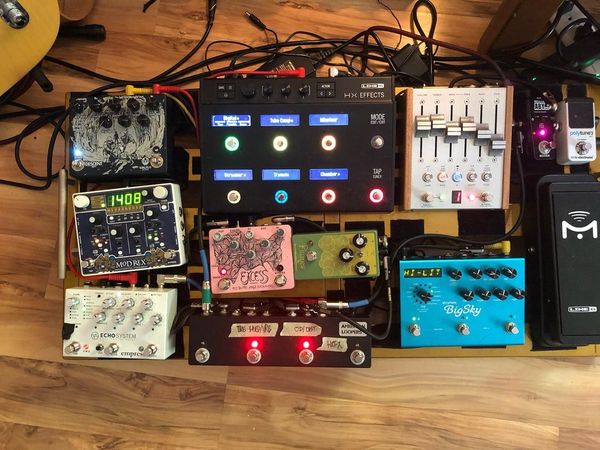

In this May 17, 2021 Instagram post Julien Baker shared a time-lapse video of her overhauling her pedal board in preparation for the Little Oblivions tour, as well as the above picture of the end result.
The Echosystem is at the bottom left.
And yes, there are other great sounds like the Eventide stuff I really like. I’m a big fan of the Empress stuff. I have an Empress Super Delay and their Echo System and their new reverb are definitely desirable as well.

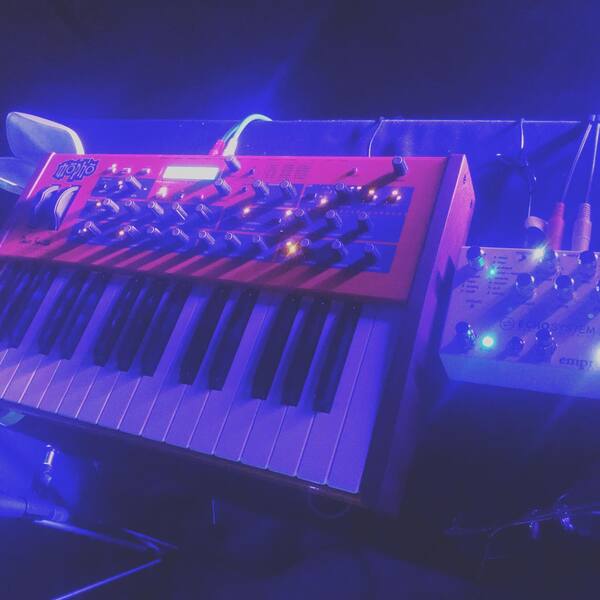

Justin Meldal-Johnsen is confirmed to use the Empress Echosystem, as it is listed on the Empress Effects artist page.
In this Instagram post by Tamino's brother he's seen with his pedalboard (third slide). The Empress Echosystem is on it.
Featured in this August 14, 2020 video.
Pedals mentioned in this video:
NXT5 by NS Design
Organelle by Critter & Guitari
Strymon Zuma
Meris Enzo (+ MIDI footswitch)
Walrus Audio Iron Horse V2
Empress ParaEq
Empress Echosystem
Album Usage
The Empress Echosystem has been featured on the following albums:
Genre Usage
Based on how artists on Equipboard use this gear, it is most commonly found in the following genres.
Used With
Based on how musicians on Equipboard use Empress Echosystem, it is most commonly used with the following gear.
